Brand: Baldor
SKU: EMM3613

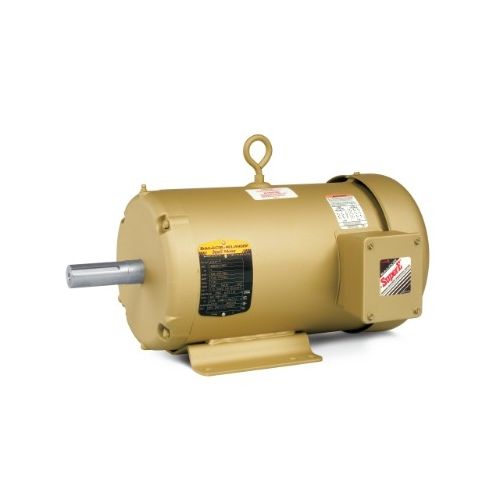

Baldor EMM3613, IEC Frame Motor, 3.7 KW, 230/460 Volts, 11.2/5.6 Amps, 3 Phase, 3450 RPM, 60 Hz, TEFC Enclosure, D100L Frame, Standard, 3634M Motor Type, Steel Frame
Baldor IEC Frame Motor
IEC Frame Motor is a wide range of low voltage IEC frame motors with improved efficiency and life cycle value. Our motors are suitable for a broad number industries and applications.
Note: Picture is illustrative and may not reflect the actual product
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Baldor EMM3613, IEC Frame Motor, 3.7 KW, 230/460 Volts, 11.2/5.6 Amps, 3 Phase, 3450 RPM, 60 Hz, TEFC Enclosure, D100L Frame, Standard, 3634M Motor Type, Steel Frame | 1 | $1,235.85/each |
Description
Baldor IEC Frame Motor
IEC Frame Motor is a wide range of low voltage IEC frame motors with improved efficiency and life cycle value. Our motors are suitable for a broad number industries and applications.
Note: Picture is illustrative and may not reflect the actual product
Specifications
| Brand | Baldor |
| Mfg. Number | EMM3613 |
| Product Type | IEC Frame Motor |
| Output | 3.700 kW |
| Voltage | 230/460 Volts |
| Phase | 3 |
| Frequency | 60 Hz |
| Synchronous Speed | 3600 RPM |
| Speed | 3450 RPM |
| Speed Code | Single Speed |
| High Voltage Full Load Amps | 5.6 Amps |
| Enclosure | TEFC |
| Frame Size | D100L |
| Motor Type | 3634M |
| Motor Standards | IEC |
| Number of Poles | 2 |
| Pulley Face Code | Standard |
| Frame Material | Steel |
| Motor Lead Quantity/Wire Size | 9 @ 16 AWG |
| Overall Length | 15.76 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 88.50% |
| Duty Rating | CONT |
| Inverter Code | Inverter ready |
| Auxillary Box | No Auxillary Box |
| Base Indicator | Rigid |
| Bearing Grease Type | POLYREX EM (-20F +300F) |
| Current | 12.4 A @ 208 V, 11.2 A @ 230 V, 5.6 A @ 460 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Heater Indicator | No heater |
| KVA Code | G |
| Motor Lead Exit | KO Box |
| Motor Lead Termination | Flying Leads |
| Rodent Screen | No |
| Shaft Diameter | 1.103 in |
| Insulation Class | F |
| Power Factor | 93 |
| Pulley End Bearing Type | Ball |
| Shaft Extension Location | Pulley End |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Starting Method | Direct on line |
| Vibration Sensor Indicator | No Vibration Sensor |
| Thermal Device - Bearing | No |
| Thermal Device - Winding | No |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, UR |
