Brand: Leeson
SKU: 132559.00

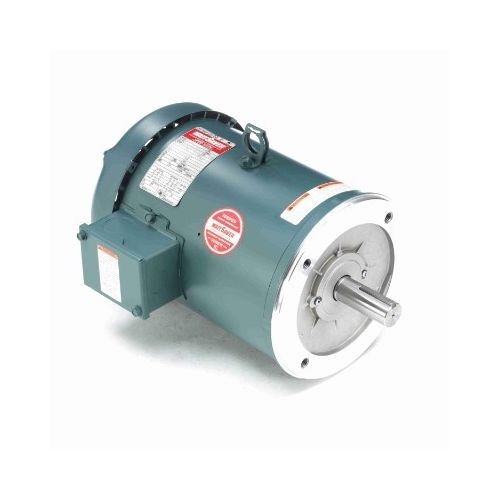

Leeson 132559.00, Hydraulic Pump Motor, 5 HP, 230/460 Volts, 6.3 Amps, 3 Phase, 60 Hz, 1760 RPM, TEFC Enclosure, 184TZ Frame, Rigid base, Rolled Steel Frame, Model no: C184T17FZ43A
Lesson Hydraulic Pump Motor
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Leeson 132559.00, Hydraulic Pump Motor, 5 HP, 230/460 Volts, 6.3 Amps, 3 Phase, 60 Hz, 1760 RPM, TEFC Enclosure, 184TZ Frame, Rigid base, Rolled Steel Frame, Model no: C184T17FZ43A | 1 | $1,146.19/each |
Description
Lesson Hydraulic Pump Motor
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Specifications
| Brand | Leeson |
| Model no | C184T17FZ43A |
| Product Type | Hydraulic Pump Motor |
| Horsepower | 5 HP |
| Voltage | 230/460 Volts |
| Phase | 3 |
| Output KW | 3.7 kW |
| Frequency | 60 Hz |
| Speed | 1760 RPM |
| Current | 6.3 Amps |
| Enclosure | TEFC |
| Frame Size | 184TZ |
| Motor Orientation | HORIZONTAL |
| Number of Poles | 4 |
| Mounting Type | Rigid base |
| Frame Material | Rolled Steel |
| Overall Length | 13.17 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 89.50% |
| Duty Rating | Continuous |
| Overload Protector | No |
| Electrical Type | Squirrel Cage Inverter Rated |
| Starting Method | Line Or Inverter |
| Design Code | B |
| KVA Code | G |
| Frame Length | 10.00 in |
| Shaft Diameter | 1.187 in |
| Insulation Class | F |
| Opp Drive End Bearing | BALL |
| Drive End Bearing | BALL |
| Shaft Extension Location | SAE SPLINE SHAFT in |
| Shaft Rotation | Reversible |
| Shaft Type | Single Special Extension |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
