Goulds WEHT0312MP1, High Temperature Sump Pump , Model 3885HT, Series WEHT, 1/3 HP, 230 Volts, 1 Phase, 2" NPT Discharge, 70 GPM Maximum, Automatic, With Ultra High-Temp Float Switch, 20 ft. Cord

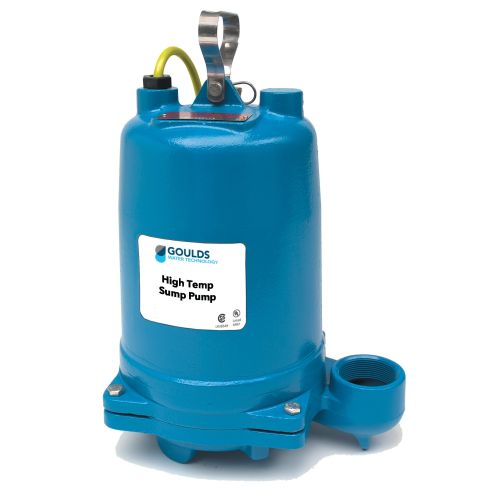

Goulds 3885HT High Temperature Sump Pump

3885HT sump pump is designed for extreme operating conditions and is instrumental where liquids are too hot for conventionally built submersible pumps. This would include moving wastewater coming from high temperature processes like boiler blow down or hot water rinses in the commercial plumbing market and applications requiring handling liquids up to 200ºF.

This high temp sump pump is built to pump corrosive or non-corrosive, clear or solid laden liquids and offers the only silicon carbide mechanical seal faces and all cast iron construction in the market.  Designed for extended life under extreme operating conditions, the 3885HT pump is able to handle the hottest of jobs with the greatest of ease.

The ability to work in extreme conditions is enhanced by the single-phase 1/3 HP pump motor. The motor has class B insulation and is rated for continuous operation when fully submerged. The motor uses high-grade turbine oil for lubri­cation and efficient heat transfer.

Features

• Cast iron, semi-open, non-clog impeller with pump-out vanes for mechanical seal protection
• Cast iron volute type for maximum efficiency
• Corrosion-resistant, stainless steel shaft with threaded design. Locknut on all models to guard against component damage on accidental reverse rotation
• 300 series stainless steel fasteners
• Capable of running dry without damage to components
• Capacitor start motor for maximum starting torque
• Built-in overload with automatic reset
• SJOOW severe duty oil and water resistant power cord, rated for high temperature
• NEMA three prong grounding plugs

Applications

Specifically designed for the following uses:

• Boiler blow down
• High temperature condensate
