Brand: Goulds
SKU: SDS1
Goulds SDS1, Assembled Sink Drain Package With EP04 Pump, 4/10 HP, 115 Volts, 1-1/2" NPT Discharge, Structural Foam Basin and Cover

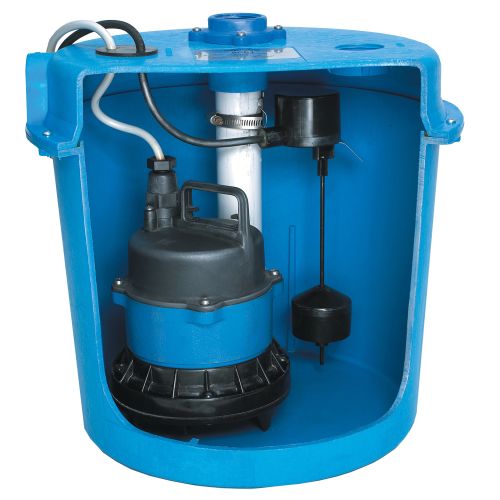

Goulds SDS1 Sink Drain Package
Fully assembled (individually cartoned) at the factory for easy installation. Capable of running dry without damage to components. It features a severe duty rated oil and water resistant power cable.
Applications
This sink drain package is specifically designed for the following uses:
- Laundry tray
- Wet bar sink
- Air conditioning condensate or dehumidifier water
- Residential dishwashers
- Beautician sink
Package includes:
- Pump model EP0411
- A2H11 Vertimaster vertical level switch with 10 foot cord and piggyback plug
- Basin and cover with built-in threaded inlet, vent and discharge connections
- 1-1/2" schedule 40 PVC discharge pipe (internal)
Basin Features
- 10 gallon structural foam basin
- Dimensions: 17" diameter x 137⁄8" high
- 1-1/2" NPT threaded vent, discharge and inlet connections
Pump EP0411 Features
- Single phase, 0.4 HP, 115 Volts with 10 feet power cord
- Thermoplastic semi-open design with pump out vanes for mechanical seal protection
- 3/4" maximum solids handling
- 1-1/2" NPT discharge connection
- Capacity up to 55 GPM
- Total head up to 24 feet
- Built in overload with automatic reset
- CSA listed pump
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Goulds SDS1, Assembled Sink Drain Package With EP04 Pump, 4/10 HP, 115 Volts, 1-1/2" NPT Discharge, Structural Foam Basin and Cover | 1 | $767.94/each |
Description
Goulds SDS1 Sink Drain Package
Fully assembled (individually cartoned) at the factory for easy installation. Capable of running dry without damage to components. It features a severe duty rated oil and water resistant power cable.
Applications
This sink drain package is specifically designed for the following uses:
- Laundry tray
- Wet bar sink
- Air conditioning condensate or dehumidifier water
- Residential dishwashers
- Beautician sink
Package includes:
- Pump model EP0411
- A2H11 Vertimaster vertical level switch with 10 foot cord and piggyback plug
- Basin and cover with built-in threaded inlet, vent and discharge connections
- 1-1/2" schedule 40 PVC discharge pipe (internal)
Basin Features
- 10 gallon structural foam basin
- Dimensions: 17" diameter x 137⁄8" high
- 1-1/2" NPT threaded vent, discharge and inlet connections
Pump EP0411 Features
- Single phase, 0.4 HP, 115 Volts with 10 feet power cord
- Thermoplastic semi-open design with pump out vanes for mechanical seal protection
- 3/4" maximum solids handling
- 1-1/2" NPT discharge connection
- Capacity up to 55 GPM
- Total head up to 24 feet
- Built in overload with automatic reset
- CSA listed pump
Specifications
| Brand | Goulds |
| Mfg. Number | SDS1 |
| Product Type | Sink Drain System |
| Application | Wastewater, Drainage |
| Horsepower | 4/10 HP |
| Voltage | 115 Volts |
| Phase | 1 |
| Frequency | 60 Hz |
| Speed | 1550 rpm |
| Discharge Connection | 1-1/2" NPT |
| Inlet Connection | 1-1/2" NPT |
| Maximum Flow | 55 gpm |
| Maximum Head | 24 ft |
| Flow at 5 ft | 53 gpm |
| Flow at 10 ft | 46 gpm |
| Flow at 15 ft | 36 gpm |
| Flow at 20 ft | 21 gpm |
| Flow at 22.5 ft | 10 gpm |
| Motor Insulation | Class B |
| Basin/Cover Material | Structural Foam |
| Basin Diameter | 17" |
| Basin Height | 13-7/8" |
| Impeller Type | Semi-open with pump-out vanes |
| Thermal Protection | Yes |
| Maximum Current | 12 Amps |
| Temperature (Continuos) | 104°F |
| Temperature (Intermittent) | 140°F |
| Power Cable Size | 10 ft |
