Brand: Goulds
SKU: HSC20B

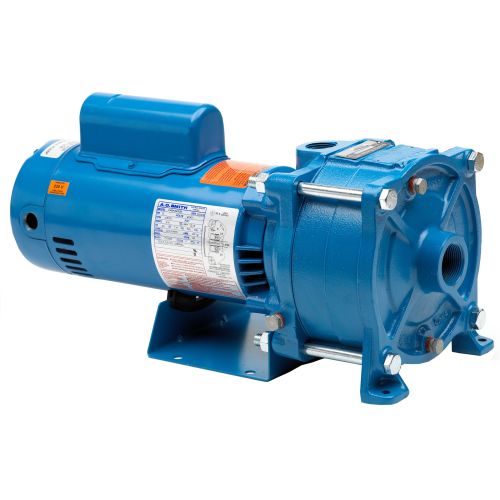

Goulds HSC20B, Multi-Stage Centrifugal Pump, HSC Series, 2 HP, 230 Volts, 3 Phase, 3 Stages, 1-1/4" Suction, 1" Discharge, 53 GPM Max., 218 ft. Max.
Goulds HSC Multi-Stage Centrifugal Pump
This is a residential and commercial centrifugal pump with multi-stage design providing steady, quiet and vibration- free operation for years of trouble-free service. Can be mounted in vertical or horizontal position.
Features
- Impellers are 20% glass-filled thermoplastic precision molded for high efficiencies
- Hex designed stainless steel pump shaft provides positive drive for impellers and eliminates clearance adjustments
- Corrosion resistant stainless steel wear rings and coverplates.
- Electro-coated paint process applied inside and out and then baked on
- O-rings throughout for positive sealing
- Can be taken apart easily for service by removing four bolts
Motor
- Close coupled design saves space, providing easy installation
- Flexible coupling and bedplate not required
- Ball bearings carry all radial/axial thrust loads
- Designed for continuous operation. All ratings are within working limits of the motor
- NEMA rated
- Built-in overload with automatic reset
- Capacitor type
- Stainless steel shaft
Applications
- General purpose pumping
- Water circulation
- Booster service
- Liquid transfer
- Spraying systems
- Jockey pump service
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Goulds HSC20B, Multi-Stage Centrifugal Pump, HSC Series, 2 HP, 230 Volts, 3 Phase, 3 Stages, 1-1/4" Suction, 1" Discharge, 53 GPM Max., 218 ft. Max. | 1 | $2,109.05/each |
Description
Goulds HSC Multi-Stage Centrifugal Pump
This is a residential and commercial centrifugal pump with multi-stage design providing steady, quiet and vibration- free operation for years of trouble-free service. Can be mounted in vertical or horizontal position.
Features
- Impellers are 20% glass-filled thermoplastic precision molded for high efficiencies
- Hex designed stainless steel pump shaft provides positive drive for impellers and eliminates clearance adjustments
- Corrosion resistant stainless steel wear rings and coverplates.
- Electro-coated paint process applied inside and out and then baked on
- O-rings throughout for positive sealing
- Can be taken apart easily for service by removing four bolts
Motor
- Close coupled design saves space, providing easy installation
- Flexible coupling and bedplate not required
- Ball bearings carry all radial/axial thrust loads
- Designed for continuous operation. All ratings are within working limits of the motor
- NEMA rated
- Built-in overload with automatic reset
- Capacitor type
- Stainless steel shaft
Applications
- General purpose pumping
- Water circulation
- Booster service
- Liquid transfer
- Spraying systems
- Jockey pump service
Specifications
| Brand | Goulds |
| Mfg. Number | HSC20B |
| Series | HSC |
| Product Type | Centrifugal pump |
| Application | Water circulation/Booster |
| Horsepower | 2 HP |
| Voltage | 230 volts |
| Phase | 3 |
| Stages | 3 |
| Frequency | 60 Hz |
| Speed | 3500 RPM |
| Design | Multi-stage/Close coupled |
| Suction Connection | 1-1/4" |
| Discharge Connection | 1" |
| Maximum Capacity | 53 GPM |
| Maximum Head | 218 ft. |
| Impeller Material | Glass-filled thermoplastic |
| Motor Shaft Material | Stainless steel |
| Rotation | Clockwise viewed from motor end |
| Enclosure | ODP |
| Pressures | 100 PSI (230ft.) |
| Max. Working Pressure | 125 PSI |
| Max. Temperature (Continuous) | 180°F |
