Brand: Goulds
SKU: GWP2223

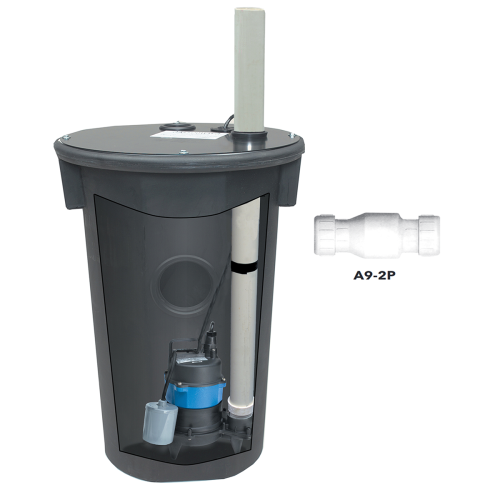

Goulds GWP2223, Preassembled Simplex Sewage Package With PS41AV Pump, 0.4 HP, 115 Volts, 1 phase, 2" NPT Discharge, (18" x 30") Polyethylene Basin, 18" Structural Foam Cover, 2" Compression Check Valve
Goulds GWP (18" x 30") Sewage Pump Package
Fully assembled at the factory for simplified installation and designed for dewatering wastewater containing solids up to 2", this pump package is ideal for:
- Homes
- Rural water districts
- Parks
- Sewage lift stations
- Waste drainage in new additions below sewer line
- Anywhere waste or drainage must be disposed of quickly, quietly and efficiently
Package includes:
- Pump, model PS41AV with T-spliced vertical float switch
- Basin (18" diameter x 30" high) with 4" inlet grommet and pump torque stop insert
- Cover with bolts, sealing tape, (2) 2", (1) 3" vent and discharge grommets
- 2" compression check valve, model A9-2P
- Discharge pipe, (2" diameter x 30" long) schedule 40 PVC
Package Features
- Structural foam cover is strong and corrosion resistant
- Vent grommets for both 2" and 3" vent provided to add system flexibility and reduce inventory
- Thermoplastic 4" uniseal inlet grommet
- Factory preset mechanical float switch for dependable automatic operation
- Torque stop insert to stabilize the pump
- Schedule 40, 2" PVC discharge pipe with 1/8" bleed hole is factory installed
- Roll top polyethylene basin with 14 gallons capacity and 4" inlet grommet
Pump PS41AV Features
- 0.4 HP, 115 Volts, single phase
- 2" NPT discharge
- Passes up to 2" spherical solids
- Maximum capacity is 110 GPM
- Maximum head is 23 feet
- Corrosion resistant construction
- Cast iron body
- Thermoplastic impeller and cover
- Upper sleeve and lower heavy duty ball bearing construction
- Motor is permanently lubricated for extended service life
- Powered for continuous operation
- All ratings are within the working limits of the motor
- Quick disconnect power cord, heavy duty 16/3 SJTW with NEMA three prong
- Complete unit is heavy duty, portable and compact
- Mechanical seal is carbon, ceramic, BUNA and stainless steel
- Stainless steel fasteners
- Built-in thermal overload pro-tection with automatic reset
- Class B insulation
- Oil-filled design
- High strength carbon steel shaft
Note: Photo is illustrative and may not reflect the actual product.
Key Features:
The Following Was Added To Your Shopping Cart
Description
Goulds GWP (18" x 30") Sewage Pump Package
Fully assembled at the factory for simplified installation and designed for dewatering wastewater containing solids up to 2", this pump package is ideal for:
- Homes
- Rural water districts
- Parks
- Sewage lift stations
- Waste drainage in new additions below sewer line
- Anywhere waste or drainage must be disposed of quickly, quietly and efficiently
Package includes:
- Pump, model PS41AV with T-spliced vertical float switch
- Basin (18" diameter x 30" high) with 4" inlet grommet and pump torque stop insert
- Cover with bolts, sealing tape, (2) 2", (1) 3" vent and discharge grommets
- 2" compression check valve, model A9-2P
- Discharge pipe, (2" diameter x 30" long) schedule 40 PVC
Package Features
- Structural foam cover is strong and corrosion resistant
- Vent grommets for both 2" and 3" vent provided to add system flexibility and reduce inventory
- Thermoplastic 4" uniseal inlet grommet
- Factory preset mechanical float switch for dependable automatic operation
- Torque stop insert to stabilize the pump
- Schedule 40, 2" PVC discharge pipe with 1/8" bleed hole is factory installed
- Roll top polyethylene basin with 14 gallons capacity and 4" inlet grommet
Pump PS41AV Features
- 0.4 HP, 115 Volts, single phase
- 2" NPT discharge
- Passes up to 2" spherical solids
- Maximum capacity is 110 GPM
- Maximum head is 23 feet
- Corrosion resistant construction
- Cast iron body
- Thermoplastic impeller and cover
- Upper sleeve and lower heavy duty ball bearing construction
- Motor is permanently lubricated for extended service life
- Powered for continuous operation
- All ratings are within the working limits of the motor
- Quick disconnect power cord, heavy duty 16/3 SJTW with NEMA three prong
- Complete unit is heavy duty, portable and compact
- Mechanical seal is carbon, ceramic, BUNA and stainless steel
- Stainless steel fasteners
- Built-in thermal overload pro-tection with automatic reset
- Class B insulation
- Oil-filled design
- High strength carbon steel shaft
Note: Photo is illustrative and may not reflect the actual product.
Specifications
| Brand | Goulds |
| Mfg. Number | GWP2223 |
| Model Number | GWP |
| Product Type | Sewage pump package |
| Application | Sewage, sump, dewatering |
| Pump Model | PS41AV |
| Operation | Automatic |
| Float Switch Style | T-spliced vertical |
| Horsepower | 0.4 HP |
| Voltage | 115 Volts |
| Phase | 1 |
| Discharge Connection | 2" NPT |
| Maximum Flow | 110 gpm |
| Maximum Head | 23 ft |
| Maximum Solids Handling | 2" |
| Basin Material | Roll top polyethylene |
| Basin Diameter | 18" |
| Basin Height | 30" |
| Cover Material | Structural foam |
| Cover Diameter | 18" |
| Check Valve Model | A9-2P |
| Check Valve Type | 2" compression |
| Discharge Pipe Diameter | 2" |
| Discharge Pipe Length | 30" |
