Brand: Goulds
SKU: 3ST1F1G4

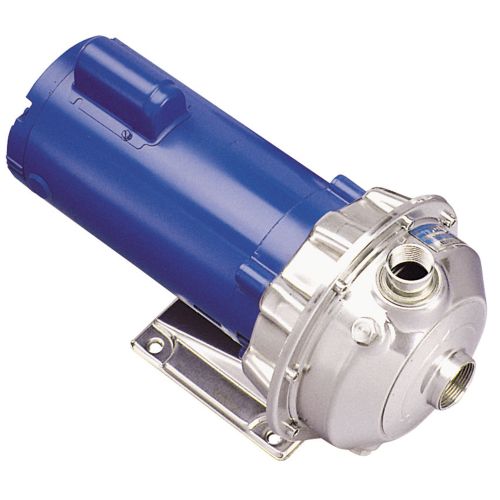

Goulds 3ST1F1G4, Centrifugal Pump, NPE Series, 1-1/2 HP, 115/230 Volts, 1 Phase, 3500 RPM, 1-1/2" NPT Discharge, 2" NPT Suction, 120 GPM Max., 50 ft. Max. Head, 3-5/8" Impeller, ODP Enclosure, Stainless Steel Body
Goulds NPE Series Close Coupled End Suction Centrifugal Pump
Features
-
The close coupled compact, flexible design saves space, can be mounted horizontally or vertically, and simplifies maintenance
-
Standard NEMA motors have stainless steel shaft and rugged ball bearing design for continuous duty under all conditions
-
Superior, complete AISI 316L stainless steel liquid handling components and mounting bracket for corrosion resistance, quality appearance, and improved strength and durability
-
Casing and adapter have NPT threaded centerline connections, easily accessible vent, prime and drain connections with stainless plugs
-
Unique floating O-ring enclosed impeller design maintains maximum efficiencies
-
High efficiency enclosed impeller with unique floating seal ring design maintains maximum efficiencies over the life of the pump without adjustment
-
Casing and adapter features stainless steel construction with NPT threaded, centerline connections, easily accessible vent, prime and drain connections with stainless steel plugs. Optional seal face vent/flush available.
-
Standard John Crane Type 21 with carbon versus silicon-carbide faces, Viton elastomers, and 316 stainless metal parts. Optional high temperature and chemical duty seals available.
-
Water circulation
-
Booster service
-
Liquid transfer
-
Spray system
-
Chillers
-
Washing/cleaning systems
-
Injection molding cooling
-
Reverse osmosis
-
Air scrubbers
-
Heat exchangers
-
Filtration systems
-
Jockey pumps
-
OEM applications
-
General water services
Key Features:
The Following Was Added To Your Shopping Cart
Description
Goulds NPE Series Close Coupled End Suction Centrifugal Pump
Features
-
The close coupled compact, flexible design saves space, can be mounted horizontally or vertically, and simplifies maintenance
-
Standard NEMA motors have stainless steel shaft and rugged ball bearing design for continuous duty under all conditions
-
Superior, complete AISI 316L stainless steel liquid handling components and mounting bracket for corrosion resistance, quality appearance, and improved strength and durability
-
Casing and adapter have NPT threaded centerline connections, easily accessible vent, prime and drain connections with stainless plugs
-
Unique floating O-ring enclosed impeller design maintains maximum efficiencies
-
High efficiency enclosed impeller with unique floating seal ring design maintains maximum efficiencies over the life of the pump without adjustment
-
Casing and adapter features stainless steel construction with NPT threaded, centerline connections, easily accessible vent, prime and drain connections with stainless steel plugs. Optional seal face vent/flush available.
-
Standard John Crane Type 21 with carbon versus silicon-carbide faces, Viton elastomers, and 316 stainless metal parts. Optional high temperature and chemical duty seals available.
-
Water circulation
-
Booster service
-
Liquid transfer
-
Spray system
-
Chillers
-
Washing/cleaning systems
-
Injection molding cooling
-
Reverse osmosis
-
Air scrubbers
-
Heat exchangers
-
Filtration systems
-
Jockey pumps
-
OEM applications
-
General water services
Specifications
| Brand | Goulds |
| Mfg. Number | 3ST1E1E4 |
| Series | NPE Series |
| Model | 3ST |
| Product Type | Centrifugal pump |
| Application | Water circulation/Booster service |
| Horsepower | 1 HP |
| Voltage | 115/230 volts |
| Phase | 1 |
| Frequency | 60 Hz |
| Speed | 3500 RPM |
| Design | Close coupled/End suction |
| Discharge Connection | 1-1/2" |
| Suction Connection | 2" |
| Maximum Capacity | 120 GPM |
| Maximum TDH | 50 ft. |
| Pump Size | 1-1/2 x 2 |
| Impeller Diameter | 3-5/8" |
| Impeller Material | 316 Stainless steel |
| Pump Casing Material | 316 Stainless steel |
| Motor Casing Material | 316 Stainless steel |
| Motor Shaft Material | 316 Stainless steel |
| Shaft Seal | Carbon/Sil-Carbide/Viton/316 Stainless |
| Rotation | Clockwise Rotation Viewed from Drive End |
| Enclosure | ODP |
| Overload Protection | Yes |
| Max. Working Pressure | 125 PSIG |
| Max. Temperature | 212°F |
