Brand: Goulds
SKU: 100MC1D2D0
Goulds 100MC1D2D0, Centrifugal Pump, Series MCC, 3/4 HP, 208-230/460 Volts, 3 Phase, 1" NPT Discharge, 3500 RPM, Cast Iron, BUNA Mechanical Seal

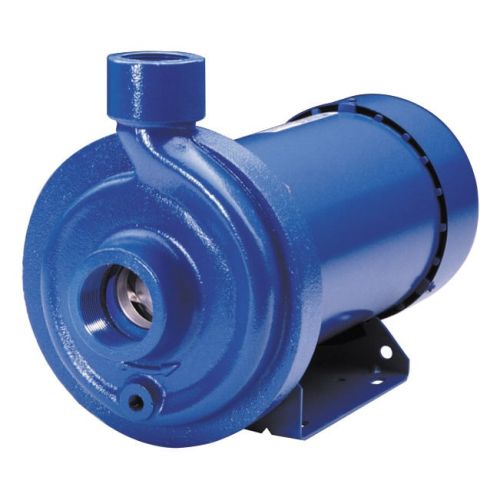

Goulds MCC Centrifugal Pump
The MCC is a close coupled, end suction, centrifugal pump for general liquid transfer service, booster service and many other applications. The liquid pump end has a cast iron construction with NPT threaded, centerline connections, easily accessible vent, prime and drain connections.
Features
- AISI 316L stainless steel impeller and seal housing for corrosion resistance, and improved strength and ductility
- High efficiency enclosed impeller in 316L stainless steel maintains maximum efficiencies over the life of the pump without adjustment
- Cast iron casing for strength and durability
- Nine position casing rotation for easy piping
- Standard John Crane mechanical seal with carbon ceramic faces, BUNA elastomers, and stainless metal parts
- Rugged ball bearing design for continuous duty under all operating conditions
- NEMA standard motor
Applications
- Water circulation
- Booster service
- Liquid transfer
- Spray system
- Chillers
- Washing/cleaning systems
- Injection molding cooling
- Air scrubbers
- Heat exchangers
- Filtration systems
- Jockey pumps
- OEM applications
- General water services
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Goulds 100MC1D2D0, Centrifugal Pump, Series MCC, 3/4 HP, 208-230/460 Volts, 3 Phase, 1" NPT Discharge, 3500 RPM, Cast Iron, BUNA Mechanical Seal | 1 | $1,037.72/each |
Description
Goulds MCC Centrifugal Pump
The MCC is a close coupled, end suction, centrifugal pump for general liquid transfer service, booster service and many other applications. The liquid pump end has a cast iron construction with NPT threaded, centerline connections, easily accessible vent, prime and drain connections.
Features
- AISI 316L stainless steel impeller and seal housing for corrosion resistance, and improved strength and ductility
- High efficiency enclosed impeller in 316L stainless steel maintains maximum efficiencies over the life of the pump without adjustment
- Cast iron casing for strength and durability
- Nine position casing rotation for easy piping
- Standard John Crane mechanical seal with carbon ceramic faces, BUNA elastomers, and stainless metal parts
- Rugged ball bearing design for continuous duty under all operating conditions
- NEMA standard motor
Applications
- Water circulation
- Booster service
- Liquid transfer
- Spray system
- Chillers
- Washing/cleaning systems
- Injection molding cooling
- Air scrubbers
- Heat exchangers
- Filtration systems
- Jockey pumps
- OEM applications
- General water services
Specifications
| Brand | Goulds |
| Mfg. Number | 1MC1D2D0 |
| Series | MCC |
| Product Type | Centrifugal pump |
| Application | Water circulation/Booster service |
| Horsepower | 3/4 HP |
| Voltage | 208-230/460 Volts |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed | 3500 RPM |
| Suction Connection | 1-1/4" NPT |
| Discharge Connection | 1" NPT |
| Design | Close coupled/End suction |
| Rotation | Clockwise viewed from drive end |
| Pump Size | 1 x 1-1/4 - 6 |
| Enclosure | ODP |
| Overload Protection | No. Starter/heater must be ordered separately |
| Impeller Diameter | 4-3/4" |
| Impeller Material | 316L stainless steel |
| Pump Casing Material | Cast iron |
| Shaft Seal | Carbon, ceramic faces, BUNA, 18-8 SS |
| Max. Working Pressure | 75 PSIG |
| Max. Temperature | 212°F |
