Brand: Goulds
SKU: 10HMX04N30TM5BQE
Goulds 10HMX04N30TM5BQE, Multistage High Pressure Centrifugal Pump, e-HMX Smart Series, 4 HP, 200-240 Volts, 3 Phase, 50/60 Hz, 4 Stages, 1-1/2" NPT Suction, 1-1/4" NPT Discharge, 76 GPM Max, 229 ft Max Head, Stainless Steel Body

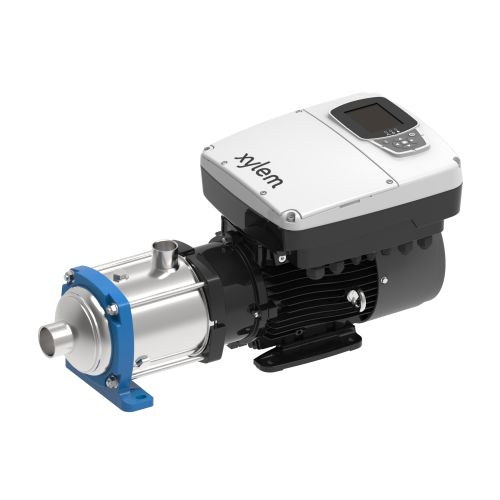

Goulds e-HMX Smart Multistage Centrifugal Pump
The e-HMX is a versatile horizontal multistage pump powered by Xylem’s Hydrovar X Smart motor built with an integrated variable speed drive. This pump offers customizable pumping solutions designed to deliver ultrapremium efficiency, connectivity, and simplicity right out of the box!
Features
- Nominal flow: 56 GPM
- Motor frame: 90
- Temperature of pumped liquid: 20ºF to 248ºF (-30ºC to 120ºC)
- Maximum operating pressure: 235 psi (16 bar)
- Carbon-Silcar-EPDM seal (standard). More options available on request
- Built-in application software makes the hydrovar X one of the easiest drives to commission, program and operate, enabling virtually any configuration of pumps
- No rare earth materials are used to minimize product availability challenges and address environmental concerns while offering smart technology and superior performance
- Advanced system control (up to 8 pumps) is customizable for a wide range of applications. The IE5 "ultra-premium" hydrovar X smart motor provides one of the broadest efficiency ranges in the industry
- Integrated pump and hydrovar X motor design eliminates the need for additional wiring, labor and associated costs
- Integrated functions provide protection for the pump and motor while optimizing performance
- VFD and/or motor can be easily replaced individually, minimizing downtime and expensive repair
- Hydrovar X motor offers higher performance with a reduced footprint when compared to Aquavar IPC solutions. Increased performance reduces electricity consumption and lowers life cycle costs
Applications
Ideal for industrial, building services and residential applications including:
- Pressure boosting and water supply systems
- Industrial washing and cleaning
- Water treatment
- Circulation of hot and cold liquids in heating, cooling and conditioning systems
The Following Was Added To Your Shopping Cart
Description
Goulds e-HMX Smart Multistage Centrifugal Pump
The e-HMX is a versatile horizontal multistage pump powered by Xylem’s Hydrovar X Smart motor built with an integrated variable speed drive. This pump offers customizable pumping solutions designed to deliver ultrapremium efficiency, connectivity, and simplicity right out of the box!
Features
- Nominal flow: 56 GPM
- Motor frame: 90
- Temperature of pumped liquid: 20ºF to 248ºF (-30ºC to 120ºC)
- Maximum operating pressure: 235 psi (16 bar)
- Carbon-Silcar-EPDM seal (standard). More options available on request
- Built-in application software makes the hydrovar X one of the easiest drives to commission, program and operate, enabling virtually any configuration of pumps
- No rare earth materials are used to minimize product availability challenges and address environmental concerns while offering smart technology and superior performance
- Advanced system control (up to 8 pumps) is customizable for a wide range of applications. The IE5 "ultra-premium" hydrovar X smart motor provides one of the broadest efficiency ranges in the industry
- Integrated pump and hydrovar X motor design eliminates the need for additional wiring, labor and associated costs
- Integrated functions provide protection for the pump and motor while optimizing performance
- VFD and/or motor can be easily replaced individually, minimizing downtime and expensive repair
- Hydrovar X motor offers higher performance with a reduced footprint when compared to Aquavar IPC solutions. Increased performance reduces electricity consumption and lowers life cycle costs
Applications
Ideal for industrial, building services and residential applications including:
- Pressure boosting and water supply systems
- Industrial washing and cleaning
- Water treatment
- Circulation of hot and cold liquids in heating, cooling and conditioning systems
Specifications
Please see the manuals for specifications on this item
