Brand: Marathon
SKU: 5K46KN4141

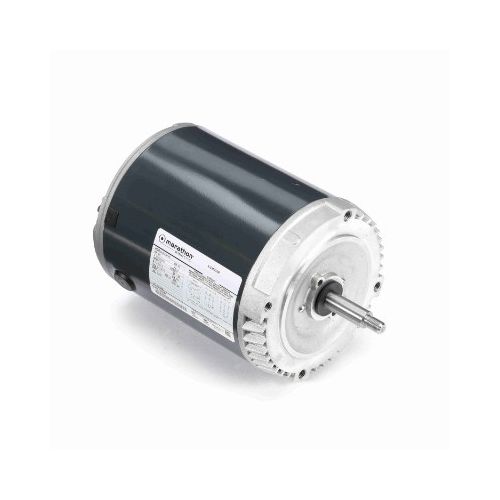

Marathon 5K46KN4141, General Purpose Pump Motor, 3/4 HP, 208-230/460 Volts, 1.5 Amps, 3 Phase, 60 Hz, 1725 RPM, ODP Enclosure, 56J Frame, Round, Rolled Steel Frame, Catalog No: K555
Marathon General Purpose Pump Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Marathon 5K46KN4141, General Purpose Pump Motor, 3/4 HP, 208-230/460 Volts, 1.5 Amps, 3 Phase, 60 Hz, 1725 RPM, ODP Enclosure, 56J Frame, Round, Rolled Steel Frame, Catalog No: K555 | 1 | $944.55/each |
Description
Marathon General Purpose Pump Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Specifications
| Brand | Marathon |
| Catalog No | K555 |
| Product Type | General Purpose Pump Motor |
| Horsepower | 3/4 HP |
| Voltage | 208-230/460 Volts |
| Phase | 3 |
| Output KW | 0.56 kW |
| Frequency | 60 Hz |
| Speed | 1725 RPM |
| Current | 1.5 Amps |
| Enclosure | ODP |
| Frame Size | 56J |
| Motor Orientation | ANY |
| Number of Poles | 4 |
| Mounting Type | Round |
| Frame Material | Rolled Steel |
| Overall Length | 11.24 in |
| Service Factor | 1.25 |
| Efficiency @ 100% Load | 74% |
| Duty Rating | Continous |
| Overload Protector | N/R |
| Electrical Type | Three Phase |
| Starting Method | N/R |
| KVA Code | K |
| Frame Length | 6.55 in |
| Shaft Diameter | 0.63 in |
| Insulation Class | B |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Locked |
| Shaft Extension Location | 2.39 in |
| Shaft Rotation | Counterclockwise/Clockwise |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
