Brand: Marathon
SKU: 5KC33FN4180X

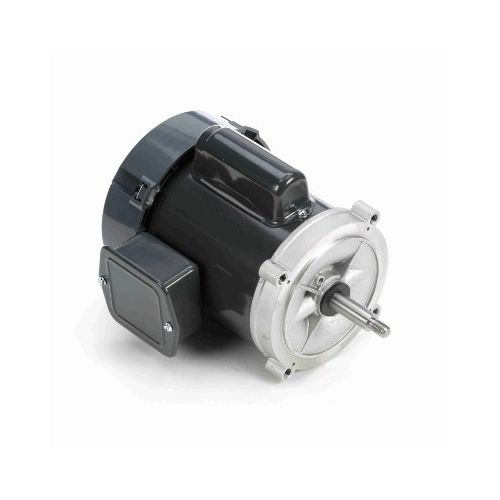

Marathon 5KC33FN4180X, General Purpose Pump Motor, 1/3 HP, 115/230 Volts, 2.8 Amps, 1 Phase, 60 Hz, 3450 RPM, TEFC Enclosure, 56J Frame, Round, Rolled Steel Frame, Catalog No: C1336
Marathon General Purpose Pump Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Marathon 5KC33FN4180X, General Purpose Pump Motor, 1/3 HP, 115/230 Volts, 2.8 Amps, 1 Phase, 60 Hz, 3450 RPM, TEFC Enclosure, 56J Frame, Round, Rolled Steel Frame, Catalog No: C1336 | 1 | $570.06/each |
Description
Marathon General Purpose Pump Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Specifications
| Brand | Marathon |
| Catalog No | C1336 |
| Product Type | General Purpose Pump Motor |
| Horsepower | 1/3 HP |
| Voltage | 115/230 Volts |
| Phase | 1 |
| Output KW | 0.25 kW |
| Frequency | 60 Hz |
| Speed | 3450 RPM |
| Current | 2.8 Amps |
| Enclosure | TEFC |
| Frame Size | 56J |
| Motor Orientation | ANY |
| Number of Poles | 2 |
| Mounting Type | Round |
| Frame Material | Rolled Steel |
| Overall Length | 11.06 in |
| Service Factor | 1 |
| Efficiency @ 100% Load | 58.90% |
| Duty Rating | Continous |
| Overload Protector | AUTO |
| Electrical Type | Capacitor Start Induction Run |
| Starting Method | SM |
| KVA Code | L |
| Frame Length | 5.41 in |
| Shaft Diameter | 0.63 in |
| Insulation Class | B |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 2.38 in |
| Shaft Rotation | Counterclockwise/Clockwise |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
