Brand: Marathon
SKU: 5K46KN2172

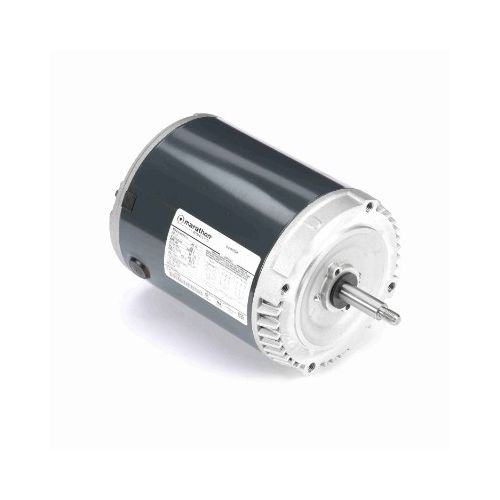

Marathon 5K46KN2172, General Purpose Pump Motor, 1-1/2 HP, 208-230/460 Volts, 2.4 Amps, 3 Phase, 60 Hz, 3450 RPM, ODP Enclosure, 56J Frame, Round, Rolled Steel Frame, Catalog No: K223
Marathon General Purpose Pump Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Marathon 5K46KN2172, General Purpose Pump Motor, 1-1/2 HP, 208-230/460 Volts, 2.4 Amps, 3 Phase, 60 Hz, 3450 RPM, ODP Enclosure, 56J Frame, Round, Rolled Steel Frame, Catalog No: K223 | 1 | $682.26/each |
Description
Marathon General Purpose Pump Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Specifications
| Brand | Marathon |
| Catalog No | K223 |
| Product Type | General Purpose Pump Motor |
| Horsepower | 1-1/2 HP |
| Voltage | 208-230/460 Volts |
| Phase | 3 |
| Output KW | 1.1 kW |
| Frequency | 60 Hz |
| Speed | 3450 RPM |
| Current | 2.4 Amps |
| Enclosure | ODP |
| Frame Size | 56J |
| Motor Orientation | ANY |
| Number of Poles | 2 |
| Mounting Type | Round |
| Frame Material | Rolled Steel |
| Overall Length | 11.24 in |
| Service Factor | 1.3 |
| Efficiency @ 100% Load | 77% |
| Duty Rating | Continous |
| Overload Protector | N/R |
| Electrical Type | Three Phase |
| Starting Method | N/R |
| Design Code | B |
| KVA Code | K |
| Frame Length | 6.55 in |
| Shaft Diameter | 0.63 in |
| Insulation Class | B |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Locked |
| Shaft Extension Location | 2.39 in |
| Shaft Rotation | Counterclockwise/Clockwise |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
