Brand: Baldor
SKU: EM2535T-CI

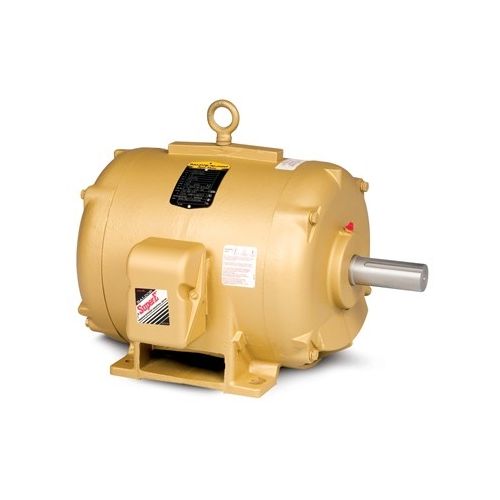

Baldor EM2535T-CI, General Purpose Motor, 30 HP, 230/460 Volts, 38.0 Amps , 3 Phase, 1800 RPM, OPEN Enclosure, 286T Frame, Standard, Foot Mounted, 1052M Motor Type, Cast Iron Frame
Baldor Super-E Premium Efficient Totally Open General Purpose Motor
This motor is designed to meet or exceed the energy efficiency requirements of the United States for general purpose industrial motors, while delivering high starting torque, overload capability and superior reliability.The Super-E motor has an insulation system that meets the requirements of NEMA MG1 Part 31.4.4.2 for VFD (Variable Frequency Drive) use and is considered Inverter Ready.
Features
- 60 Hz design
- Locked DE bearing to allow mounting in any configuration
- Ball bearing
- Cast Iron frame
- Gasketed conduit box
- NEMA Premium efficiency
- 3 year warranty
Applications
- Pumps
- Fans
- Conveyors
- Machine tools
- Gear reducers
- Other applications requiring a NEMA Standard motor
Note: Picture is illustrative and may not reflect the actual product
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Baldor EM2535T-CI, General Purpose Motor, 30 HP, 230/460 Volts, 38.0 Amps , 3 Phase, 1800 RPM, OPEN Enclosure, 286T Frame, Standard, Foot Mounted, 1052M Motor Type, Cast Iron Frame | 1 | $4,856.78/each |
Description
Baldor Super-E Premium Efficient Totally Open General Purpose Motor
This motor is designed to meet or exceed the energy efficiency requirements of the United States for general purpose industrial motors, while delivering high starting torque, overload capability and superior reliability.The Super-E motor has an insulation system that meets the requirements of NEMA MG1 Part 31.4.4.2 for VFD (Variable Frequency Drive) use and is considered Inverter Ready.
Features
- 60 Hz design
- Locked DE bearing to allow mounting in any configuration
- Ball bearing
- Cast Iron frame
- Gasketed conduit box
- NEMA Premium efficiency
- 3 year warranty
Applications
- Pumps
- Fans
- Conveyors
- Machine tools
- Gear reducers
- Other applications requiring a NEMA Standard motor
Note: Picture is illustrative and may not reflect the actual product
Specifications
| Brand | Baldor |
| Mfg. Number | EM2535T-CI |
| Product Type | General Purpose Industrial Motor |
| Application | Material Handling, Machine Tool |
| Horsepower | 30 HP |
| Voltage | 230/460 Volts |
| Phase | 3 Phase |
| Frequency | 60 Hz |
| Synchronous Speed | 1800 RPM |
| Speed | 1775 RPM |
| Speed Code | Single Speed |
| High Voltage Full Load Amps | 38.0 Amps |
| Enclosure | OPEN |
| Motor Type | 1052M |
| Frame Size | 286T |
| Motor Standards | NEMA |
| Number of Poles | 4 |
| Pulley Face Code | Standard |
| Frame Material | Cast Iron |
| Motor Lead Quantity/Wire Size | 9 @ 10 AWG |
| Overall Length | 24.94 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 94.1% |
| Duty Rating | CONT |
| Inverter Code | Inverter ready |
| Auxillary Box | No |
| Base Indicator | Rigid |
| Bearing Grease Type | POLYREX EM (-20F +300F) |
| Mounting Type | Food Mounting |
| Current | 76.0 A @ 208 V, 76.0 A @ 230 V, 38.0 A @ 460 V |
| Design Code | A |
| Drip Cover | No |
| Heater Indicator | No heater |
| KVA Code | H |
| Motor Lead Exit | KO Box |
| Motor Lead Termination | Flying Leads |
| Rodent Screen | No |
| Shaft Diameter | 1.875 in |
| Insulation Class | F |
| Power Factor | 77 |
| Pulley End Bearing Type | Ball Bearing |
| Shaft Extension Location | Pulley End |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Starting Method | Direct on line |
| Vibration Sensor Indicator | No Vibration Sensor |
| Thermal Device - Bearing | No |
| Thermal Device - Winding | No |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CSA, EEV, UR |
