Brand: Baldor
SKU: CEM3583T-5

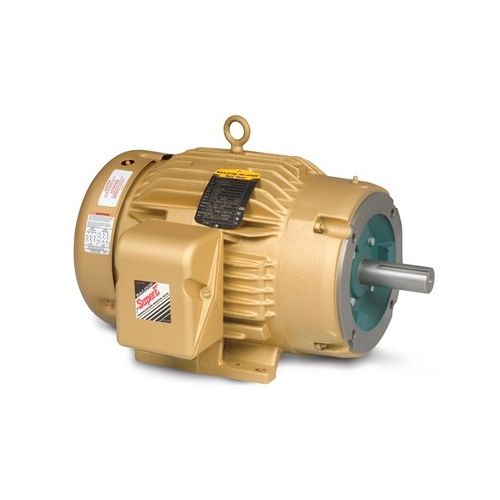

Baldor CEM3583T-5, General Purpose Motor, 1-1/2 HP, 575 Volts, 1.5 Amps, 3 Phase, 3500 RPM, TEFC Enclosure, 143TC Frame, C-Face, Foot Mounted, 0520M Motor Type, Cast Iron Frame
Baldor Super-E Premium Efficient Totally Enclosed General Purpose Motor
This motor is designed to meet or exceed the energy efficiency requirements of the United States for general purpose industrial motors, while delivering high starting torque, overload capability and superior reliability. It has a Totally Enclosed enclosure that protects the motor from harsh environments because air does not pass freely through the motor. The Super-E motor has an insulation system that meets the requirements of NEMA MG1 Part 31.4.4.2 for VFD (Variable Frequency Drive) use and is considered Inverter Ready.
Features
- 60 Hz design
- Locked DE bearing to allow mounting in any configuration
- Ball bearing
- Cast iron frame
- Gasketed conduit box
- NEMA Premium efficiency
- 3 year warranty
Applications
- Pumps
- Fans
- Conveyors
- Machine tools
- Gear reducers
- Other applications requiring a NEMA C-face motor
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Baldor CEM3583T-5, General Purpose Motor, 1-1/2 HP, 575 Volts, 1.5 Amps, 3 Phase, 3500 RPM, TEFC Enclosure, 143TC Frame, C-Face, Foot Mounted, 0520M Motor Type, Cast Iron Frame | 1 | $1,328.25/each |
Description
Baldor Super-E Premium Efficient Totally Enclosed General Purpose Motor
This motor is designed to meet or exceed the energy efficiency requirements of the United States for general purpose industrial motors, while delivering high starting torque, overload capability and superior reliability. It has a Totally Enclosed enclosure that protects the motor from harsh environments because air does not pass freely through the motor. The Super-E motor has an insulation system that meets the requirements of NEMA MG1 Part 31.4.4.2 for VFD (Variable Frequency Drive) use and is considered Inverter Ready.
Features
- 60 Hz design
- Locked DE bearing to allow mounting in any configuration
- Ball bearing
- Cast iron frame
- Gasketed conduit box
- NEMA Premium efficiency
- 3 year warranty
Applications
- Pumps
- Fans
- Conveyors
- Machine tools
- Gear reducers
- Other applications requiring a NEMA C-face motor
Specifications
| Brand | Baldor |
| Mfg. Number | CEM3583T-5 |
| Product Type | General Purpose Industrial Motor |
| Application | Fans/Pumps/Industrial machines |
| Horsepower | 1-1/2 HP |
| Voltage | 575 Volts |
| Phase | 3 |
| Frequency | 60 Hz |
| Synchronous Speed | 3600 RPM |
| Speed | 3500 RPM |
| Speed Code | Single Speed |
| High Voltage Full Load Amps | 1.5 Amps |
| Enclosure | TEFC |
| Motor Type | 0520M |
| Frame Size | 143TC |
| Motor Standards | NEMA |
| Number of Poles | 2 |
| Pulley Face Code | C-Face |
| Frame Material | Cast Iron |
| Motor Lead Quantity/Wire Size | 3 @ 18 AWG |
| Overall Length | 13.03 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 84.00% |
| Duty Rating | CONT |
| Inverter Code | Inverter ready |
| Auxillary Box | No Auxillary Box |
| Base Indicator | Rigid |
| Bearing Grease Type | POLYREX EM (-20F +300F) |
| Mounting Type | Foot mounted |
| Current | 1.5 A |
| Design Code | B |
| Drip Cover | No |
| Heater Indicator | No heater |
| KVA Code | L |
| Motor Lead Exit | KO Box |
| Motor Lead Termination | Flying Leads |
| Rodent Screen | No |
| Shaft Diameter | 0.875 in |
| Insulation Class | F |
| Power Factor | 85 |
| Pulley End Bearing Type | Ball Bearing |
| Shaft Extension Location | Pulley End |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Starting Method | Direct on line |
| Vibration Sensor Indicator | No Vibration Sensor |
| Thermal Device - Bearing | No |
| Thermal Device - Winding | No |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CSA EEV, UR |
