Brand: Marathon
SKU: 215TBFW7028

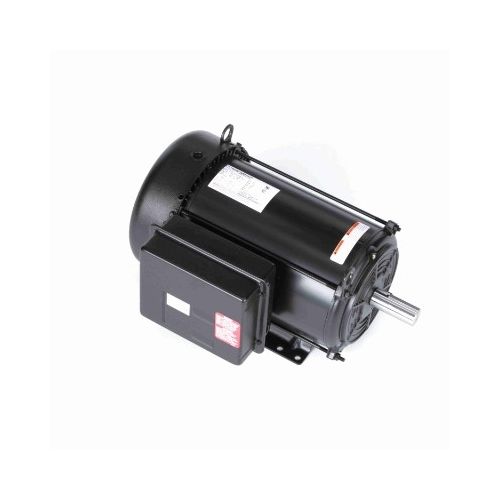

Marathon 215TBFW7028, General Purpose Farm Duty Motor, 7-1/2 HP, 230 Volts, 30.5 Amps, 1 Phase, 60 Hz, 1750 RPM, TEFC Enclosure, 215TZ Frame, Rigid Base, Rolled Steel Frame, Catalog No:Z115
Marathon General Purpose Farm Duty Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Marathon 215TBFW7028, General Purpose Farm Duty Motor, 7-1/2 HP, 230 Volts, 30.5 Amps, 1 Phase, 60 Hz, 1750 RPM, TEFC Enclosure, 215TZ Frame, Rigid Base, Rolled Steel Frame, Catalog No:Z115 | 1 | $2,058.92/each |
Description
Marathon General Purpose Farm Duty Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Specifications
| Brand | Marathon |
| Catalog No | Z115 |
| Product Type | General Purpose Farm Duty Motor |
| Horsepower | 7-1/2 HP |
| Voltage | 230 Volts |
| Phase | 1 |
| Output KW | 5.6 kW |
| Frequency | 60 Hz |
| Speed | 1750 RPM |
| Current | 30.5 Amps |
| Enclosure | TEFC |
| Frame Size | 215TZ |
| Motor Orientation | Horizontal |
| Number of Poles | 4 |
| Mounting Type | Rigid Base |
| Frame Material | Rolled Steel |
| Overall Length | 21.09 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 85.50% |
| Duty Rating | Continous |
| Overload Protector | Manual |
| Electrical Type | Capacitor Start Capacitor Run |
| Starting Method | Across The Line |
| Design Code | L |
| KVA Code | K |
| Frame Length | 12.40 in |
| Shaft Diameter | 1.125 in |
| Insulation Class | F |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 3.5 in |
| Shaft Rotation | Selective Counterclockwise |
| Shaft Type | Single Special Extension |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
