Brand: Marathon
SKU: 056C17F5358

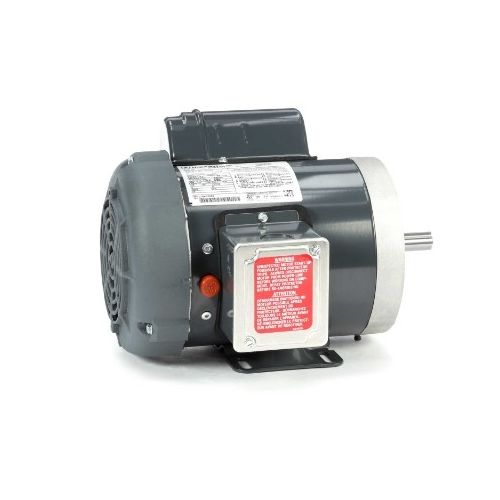

Marathon 056C17F5358, General Purpose Farm Duty Motor, 33/100 HP, 115/208-230 Volts, 3.3 Amps, 1 Phase, 60 Hz, 1725 RPM, TEFC Enclosure, 56C Frame, Rigid Base, Rolled Steel Frame, Catalog No:F131
Marathon General Purpose Farm Duty Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
Description
Marathon General Purpose Farm Duty Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Specifications
| Brand | Marathon |
| Catalog No | F131 |
| Product Type | General Purpose Farm Duty Motor |
| Horsepower | 33/100 HP |
| Voltage | 115/208-230 Volts |
| Phase | 1 |
| Output KW | 0.25 kW |
| Frequency | 60 Hz |
| Speed | 1725 RPM |
| Current | 3.3 Amps |
| Enclosure | TEFC |
| Frame Size | 56C |
| Motor Orientation | Horizontal |
| Number of Poles | 4 |
| Mounting Type | Rigid Base |
| Frame Material | Rolled Steel |
| Overall Length | 11.82 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 55% |
| Duty Rating | Continous |
| Overload Protector | Manual |
| Electrical Type | Capacitor Start Induction Run |
| Starting Method | Across The Line |
| Design Code | N |
| KVA Code | N |
| Frame Length | 6.56 in |
| Shaft Diameter | 0.625 in |
| Insulation Class | B |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 2.06 in |
| Shaft Rotation | Selective Counterclockwise |
| Shaft Type | NEMA 56 |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
