Brand: Marathon
SKU: 048A11T2023

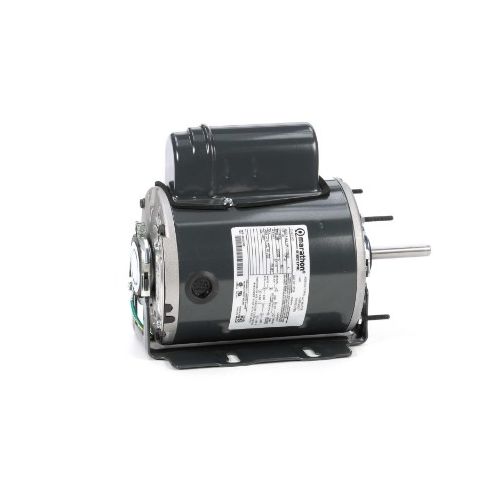

Marathon 048A11T2023, General Purpose Farm Duty Motor, 1/2 HP, 115/230 Volts, 3.2 Amps, 1 Phase, 60 Hz, 1075 RPM, TEAO Enclosure, 48Y Frame, Resilient Base - Extended Studs, Rolled Steel Frame, Catalog No:X029
Marathon General Purpose Farm Duty Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
Description
Marathon General Purpose Farm Duty Motor
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies.
Specifications
| Brand | Marathon |
| Catalog No | X029 |
| Product Type | General Purpose Farm Duty Motor |
| Horsepower | 1/2 HP |
| Voltage | 115/230 Volts |
| Phase | 1 |
| Output KW | 0.37 kW |
| Frequency | 60 Hz |
| Speed | 1075 RPM |
| Current | 3.2 Amps |
| Enclosure | TEAO |
| Frame Size | 48Y |
| Motor Orientation | Horizontal |
| Number of Poles | 6 |
| Mounting Type | Resilient Base - Extended Studs |
| Frame Material | Rolled Steel |
| Overall Length | 10.84 in |
| Service Factor | 1 |
| Efficiency @ 100% Load | 68.30% |
| Duty Rating | Continuous |
| Overload Protector | Automatic Lock Rotor Only |
| Electrical Type | Permanent Split Capacitor |
| Starting Method | Across The Line |
| Design Code | NO DESIGN CODE |
| KVA Code | D |
| Frame Length | 6.25 in |
| Shaft Diameter | 0.500 in |
| Insulation Class | B |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 2.56 in |
| Shaft Rotation | Selective Counterclockwise |
| Shaft Type | Single Special Extension |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
