Brand: Marathon
SKU: 326TSTDBD6001

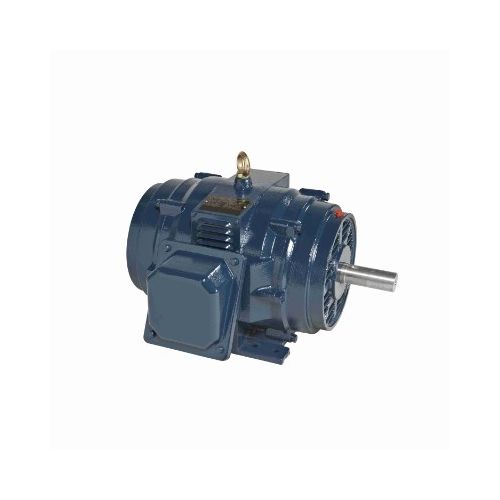

Marathon 326TSTDBD6001, General Purpose Motor, 60 HP, 230/460 Volts, 68.0 Amps, 3 Phase, 3575 RPM, 60 Hz, ODP Enclosure, 326TS Frame, Rigid base, Footless Mounted, Rolled Steel Frame, Catalog No: GT0080
Marathon General Purpose Three Phase Open Drip Proof
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- 182T-215T models steel frame, 254T-449T models cast iron frame
- Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque
- Class F Insulation
- Standard assembly F1, reversible to F2 assembly
Note:Picture is illustrative and may not reflect the actual product.
Key Features:
The Following Was Added To Your Shopping Cart
Description
Marathon General Purpose Three Phase Open Drip Proof
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- 182T-215T models steel frame, 254T-449T models cast iron frame
- Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque
- Class F Insulation
- Standard assembly F1, reversible to F2 assembly
Note:Picture is illustrative and may not reflect the actual product.
Specifications
| Brand | Marathon |
| Catalog No | GT0080 |
| Product Type | General Purpose Motor |
| Horsepower | 60 HP |
| Voltage | 230/460 Volts |
| Phase | 3 |
| Output KW | 45.0 kW |
| Frequency | 60 Hz |
| Speed | 3575 RPM |
| Current | 68.0 Amps |
| Enclosure | ODP |
| Frame Size | 326TS |
| Motor Orientation | Horizontal |
| Number of Poles | 2 |
| Mounting Type | Rigid Base |
| Frame Material | Rolled Steel |
| Overall Length | 28.23 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 93.60% |
| Duty Rating | Continous |
| Overload Protector | No |
| Electrical Type | Squirrel Cage Inverter Rated |
| Starting Method | Wye Start Delta Run Or Inverter |
| Design Code | B |
| KVA Code | F |
| Shaft Diameter | 1.875 in |
| Insulation Class | F |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 3.75 in |
| Shaft Rotation | Reversible |
| Shaft Type | TS |
| Ambient Temperature | 40 °C |
| Agency Approvals | UL, CSA, CE |
