Brand: Marathon
SKU: 326TTDBD6026

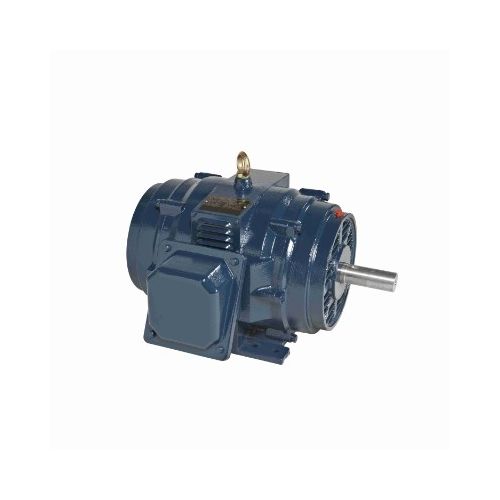

Marathon 326TTDBD6026, General Purpose Motor, 50 HP, 230/460 Volts, 59.0 Amps, 3 Phase, 1780 RPM, 60 Hz, ODP Enclosure, 326T Frame, Rigid base, Footless Mounted, Rolled Steel Frame, Catalog No: GT0077
Marathon General Purpose Three Phase Open Drip Proof
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- Motors are suitable for 10:1 VT on all frame sizes and 10:1 CT up to 365T frame (Except where noted)
- Normally closed thermostats, as noted
- Class F Insulation
- Nameplated 60/50 hertz
Note:Picture is illustrative and may not reflect the actual product.
Key Features:
The Following Was Added To Your Shopping Cart
Description
Marathon General Purpose Three Phase Open Drip Proof
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- Motors are suitable for 10:1 VT on all frame sizes and 10:1 CT up to 365T frame (Except where noted)
- Normally closed thermostats, as noted
- Class F Insulation
- Nameplated 60/50 hertz
Note:Picture is illustrative and may not reflect the actual product.
Specifications
| Brand | Marathon |
| Catalog No | GT0077 |
| Product Type | General Purpose Motor |
| Horsepower | 50 HP |
| Voltage | 230/460 Volts |
| Phase | 3 |
| Output KW | 37.0 kW |
| Frequency | 60 Hz |
| Speed | 1780 RPM |
| Current | 59.0 Amps |
| Enclosure | ODP |
| Frame Size | 326T |
| Motor Orientation | Horizontal |
| Number of Poles | 4 |
| Mounting Type | Rigid Base |
| Frame Material | Rolled Steel |
| Overall Length | 29.73 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 94.50% |
| Duty Rating | Continous |
| Overload Protector | No |
| Electrical Type | Squirrel Cage Inverter Rated |
| Starting Method | Wye Start Delta Run Or Inverter |
| Design Code | B |
| KVA Code | G |
| Shaft Diameter | 2.125 in |
| Insulation Class | F |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 5.25 in |
| Shaft Rotation | Reversible |
| Shaft Type | T |
| Ambient Temperature | 40 °C |
| Agency Approvals | UL, CSA, CE |
