Brand: Leeson
SKU: 131549.00

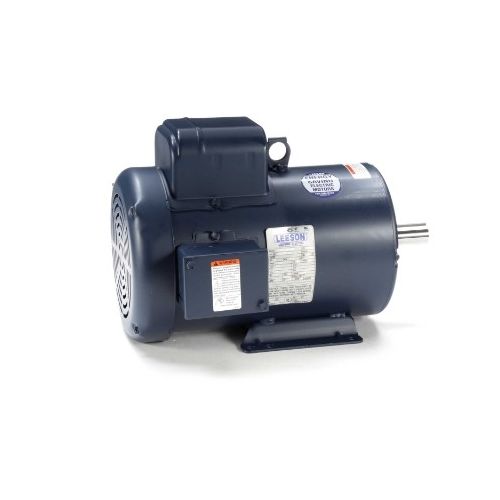

Leeson 131549.00, General Purpose, 5 HP, 230 Volts, 19.8 Amps, 1 Phase, 3500 RPM, 60 Hz, TEFC Enclosure, 184T Frame, Rigid Base, Footless Mounted, Rolled Steel Frame, Model no: C184K34FB6C
Leeson General Purpose Single Phase Enclosed (TEFC)
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Leeson 131549.00, General Purpose, 5 HP, 230 Volts, 19.8 Amps, 1 Phase, 3500 RPM, 60 Hz, TEFC Enclosure, 184T Frame, Rigid Base, Footless Mounted, Rolled Steel Frame, Model no: C184K34FB6C | 1 | $1,198.50/each |
Description
Leeson General Purpose Single Phase Enclosed (TEFC)
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Specifications
| Brand | Leeson |
| Model no | C184K34FB6C |
| Product Type | General Purpose Motor |
| Horsepower | 5 HP |
| Voltage | 230 Volts |
| Phase | 1 |
| Output KW | 3.7 kW |
| Frequency | 60 Hz |
| Speed | 3500 RPM |
| Current | 19.8 Amps |
| Enclosure | TEFC |
| Frame Size | 184T |
| Motor Orientation | Horizontal |
| Number of Poles | 2 |
| Mounting Type | Rigid Base |
| Frame Material | Rolled Steel |
| Overall Length | 16.96 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 82.50% |
| Duty Rating | Continuous |
| Overload Protector | No |
| Electrical Type | Capacitor Start Capacitor Run |
| Starting Method | Across The Line |
| Design Code | L |
| KVA Code | H |
| Frame Length | 11.50 in |
| Shaft Diameter | 1.125 in |
| Insulation Class | F |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 2.75 in |
| Shaft Rotation | Selective Counterclockwise |
| Shaft Type | T |
| Ambient Temperature | 40 °C |
| Agency Approvals | UL, CSA, CE |
