Brand: Marathon
SKU: 056T17D11050

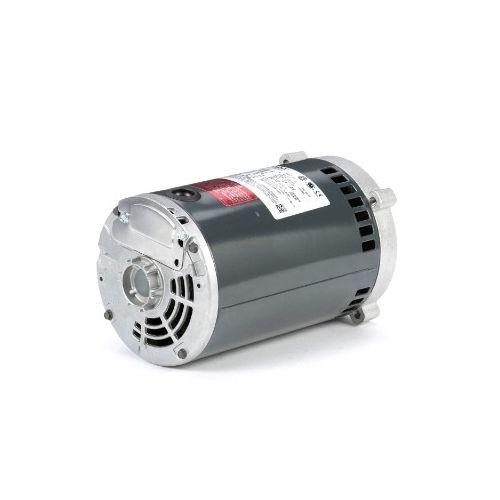

Marathon 056T17D11050, General Purpose Motor, 33/100 HP, 230/460 Volts, 0.60 Amps, 3 Phase, 1725 RPM, 60 Hz, ODP Enclosure, 56C Frame, Round, Footless Mounted, Rolled Steel Frame, Catalog No: K248A
Marathon General Purpose Three Phase Open Drip Proof
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Heavy gauge steel frame and base
- Economical split phase design
- 1/2' shaft with 5/8' adapter and key
Note:Picture is illustrative and may not reflect the actual product.
Key Features:
The Following Was Added To Your Shopping Cart
Description
Marathon General Purpose Three Phase Open Drip Proof
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Heavy gauge steel frame and base
- Economical split phase design
- 1/2' shaft with 5/8' adapter and key
Note:Picture is illustrative and may not reflect the actual product.
Specifications
| Brand | Marathon |
| Catalog No | K248A |
| Product Type | General Purpose Motor |
| Horsepower | 33/100 HP |
| Voltage | 230/460 Volts |
| Phase | 3 |
| Output KW | 0.25 kW |
| Frequency | 60 Hz |
| Speed | 1725 RPM |
| Current | 0.60 Amps |
| Enclosure | ODP |
| Frame Size | 56C |
| Motor Orientation | Horizontal |
| Number of Poles | 4 |
| Mounting Type | Round |
| Frame Material | Rolled Steel |
| Overall Length | 11.44 in |
| Service Factor | 1.35 |
| Efficiency @ 100% Load | 73.40% |
| Duty Rating | Continous |
| Overload Protector | No |
| Electrical Type | Squirrel Cage Inverter Rated |
| Starting Method | Line Or Inverter |
| Design Code | B |
| KVA Code | M |
| Frame Length | 7.50 in |
| Shaft Diameter | 0.625 in |
| Insulation Class | B |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 2.06 in |
| Shaft Rotation | Reversible |
| Shaft Type | NEMA 56 |
| Ambient Temperature | 40 °C |
| Agency Approvals | UL, CSA, CE |
