Brand: Marathon
SKU: 5KC36LN26

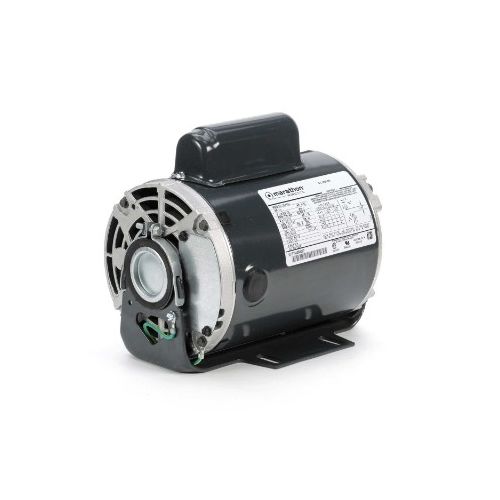

Marathon 5KC36LN26, General Purpose Motor, 33/100 HP, 115/208-230 Volts, 3.0 Amps, 1 Phase, 1725 RPM, 60 Hz, ODP Enclosure, 48 Frame, Resilient Base, Footless Mounted, Rolled Steel Frame, Catalog No: C209
Marathon General Purpose Three Phase Open Drip Proof
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Heavy gauge steel frame and base
- Ball bearings
- Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower
Note:Picture is illustrative and may not reflect the actual product.
Key Features:
The Following Was Added To Your Shopping Cart
Description
Marathon General Purpose Three Phase Open Drip Proof
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Heavy gauge steel frame and base
- Ball bearings
- Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower
Note:Picture is illustrative and may not reflect the actual product.
Specifications
| Brand | Marathon |
| Catalog No | C209 |
| Product Type | General Purpose Motor |
| Horsepower | 33/100 HP |
| Voltage | 115/208-230 Volts |
| Phase | 1 |
| Output KW | 0.25 kW |
| Frequency | 60 Hz |
| Speed | 1725 RPM |
| Current | 3.0 Amps |
| Enclosure | ODP |
| Frame Size | 48 |
| Motor Orientation | Any |
| Number of Poles | 4 |
| Mounting Type | Resilient Base |
| Frame Material | Rolled Steel |
| Overall Length | 10 in |
| Service Factor | 1.35 |
| Efficiency @ 100% Load | 59.50% |
| Duty Rating | Continous |
| Overload Protector | N/R |
| Electrical Type | Capacitor Start Induction Run |
| Starting Method | SM |
| KVA Code | M |
| Frame Length | 6.22 in |
| Shaft Diameter | 0.5 in |
| Insulation Class | B |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 1.5 in |
| Shaft Rotation | Counterclockwise/Clockwise |
| Ambient Temperature | 40 °C |
| Agency Approvals | UL, CSA, CE |
