Brand: Leeson
SKU: 171377.60

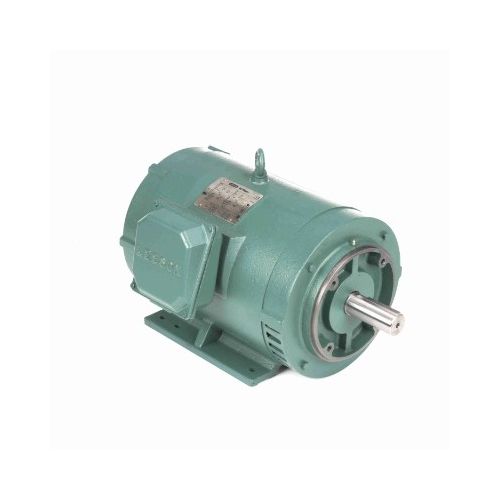

Leeson 171377.60, General Purpose, 30 HP, 208-230/460 Volts, 35.5 Amps, 3 Phase, 1780 RPM, 60 Hz, ODP Enclosure, 286TC Frame, Rigid Base, Footless Mounted, Cast Iron Frame, Model no: C286T17DK5AA
Leeson General Purpose Three Phase Open Drip Proof
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Leeson 171377.60, General Purpose, 30 HP, 208-230/460 Volts, 35.5 Amps, 3 Phase, 1780 RPM, 60 Hz, ODP Enclosure, 286TC Frame, Rigid Base, Footless Mounted, Cast Iron Frame, Model no: C286T17DK5AA | 1 | $3,437.06/each |
Description
Leeson General Purpose Three Phase Open Drip Proof
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Specifications
| Brand | Leeson |
| Model no | C286T17DK5AA |
| Product Type | General Purpose Motor |
| Horsepower | 30 HP |
| Voltage | 208-230/460 Volts |
| Phase | 3 |
| Output KW | 22.4 kW |
| Frequency | 60 Hz |
| Speed | 1780 RPM |
| Current | 35.5 Amps |
| Enclosure | ODP |
| Frame Size | 286TC |
| Motor Orientation | Horizontal |
| Number of Poles | 4 |
| Mounting Type | Rigid Base |
| Frame Material | Cast Iron |
| Overall Length | 25.51 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 94.10% |
| Duty Rating | Continuous |
| Overload Protector | No |
| Electrical Type | Squirrel Cage Inverter Rated |
| Starting Method | Wye Start Delta Run Or Inverter |
| Design Code | B |
| KVA Code | H |
| Shaft Diameter | 1.875 in |
| Insulation Class | F |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 4.62 in |
| Shaft Rotation | Reversible |
| Shaft Type | T |
| Ambient Temperature | 40 °C |
| Agency Approvals | UL, CSA, CE |
