Brand: Marathon
SKU: 215TBDW7079
Marathon 215TBDW7079, General Purpose Motor, 3 HP, 230 Volts, 16.0 Amps, 1 Phase, 1155 RPM, 60 Hz, ODP Enclosure, 215T Frame, Rigid Base, Footless Mounted, Rolled Steel Frame, Catalog No: I144
Marathon General Purpose Three Phase Open Drip Proof
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Will accept C-Face Kits, see Accessories Section (except as noted)

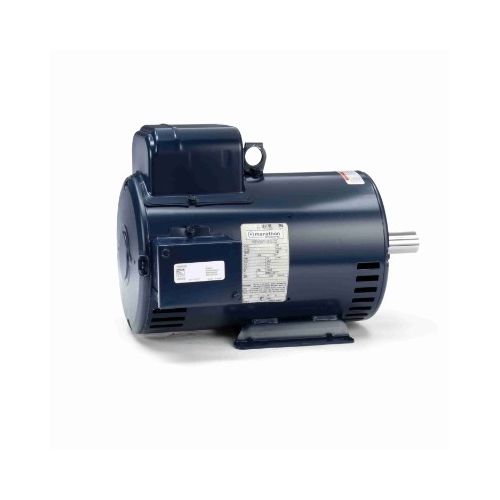

Note:Picture is illustrative and may not reflect the actual product.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Marathon 215TBDW7079, General Purpose Motor, 3 HP, 230 Volts, 16.0 Amps, 1 Phase, 1155 RPM, 60 Hz, ODP Enclosure, 215T Frame, Rigid Base, Footless Mounted, Rolled Steel Frame, Catalog No: I144 | 1 | $1,416.48/each |
Description
Marathon General Purpose Three Phase Open Drip Proof
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Will accept C-Face Kits, see Accessories Section (except as noted)
Note:Picture is illustrative and may not reflect the actual product.
Specifications
| Brand | Marathon |
| Catalog No | I144 |
| Product Type | General Purpose Motor |
| Horsepower | 3 HP |
| Voltage | 230 Volts |
| Phase | 1 |
| Output KW | 2.2 kW |
| Frequency | 60 Hz |
| Speed | 1155 RPM |
| Current | 16.0 Amps |
| Enclosure | ODP |
| Frame Size | 215T |
| Motor Orientation | Horizontal |
| Number of Poles | 6 |
| Mounting Type | Rigid Base |
| Frame Material | Rolled Steel |
| Overall Length | 18.05 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 80% |
| Duty Rating | Continous |
| Overload Protector | No |
| Electrical Type | Capacitor Start Capacitor Run |
| Starting Method | Across The Line |
| Design Code | L |
| KVA Code | G |
| Frame Length | 11.15 in |
| Shaft Diameter | 1.375 in |
| Insulation Class | B |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 3.47 in |
| Shaft Rotation | Selective Counterclockwise |
| Shaft Type | T |
| Ambient Temperature | 40 °C |
| Agency Approvals | UL, CSA, CE |
