Brand: Marathon
SKU: 182TTFBD6003

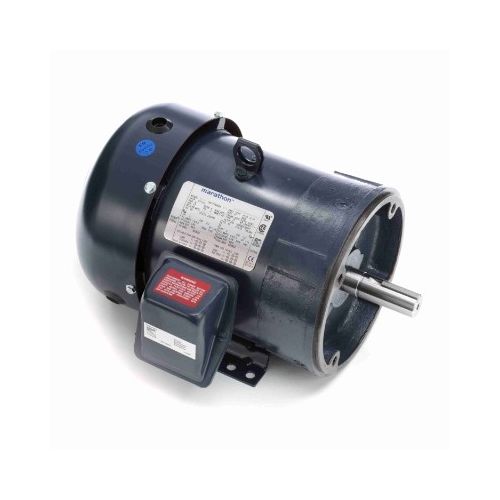

Marathon 182TTFBD6003, General Purpose Motor, 3 HP, 230/460 Volts, 4.0 Amps, 3 Phase, 3522 RPM, 60 Hz, TEFC Enclosure, 182TC Frame, Rigid base, Footless Mounted, Rolled Steel Frame, Catalog No: GT1209A
Marathon General Purpose Three Phase Totally Enclosed Fan Cooled
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Class F Insulation
- Standard assembly F1, reversible to F2 assembly
- C-face addition may result in non-NEMA 'BA' dim. For new 'BA' dim consult chart found in modification section
Note: Picture is illustrative and may not reflect the actual product.
Key Features:
The Following Was Added To Your Shopping Cart
Description
Marathon General Purpose Three Phase Totally Enclosed Fan Cooled
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Class F Insulation
- Standard assembly F1, reversible to F2 assembly
- C-face addition may result in non-NEMA 'BA' dim. For new 'BA' dim consult chart found in modification section
Note: Picture is illustrative and may not reflect the actual product.
Specifications
| Brand | Marathon |
| Catalog No | GT1209A |
| Product Type | General Purpose Motor |
| Horsepower | 3 HP |
| Voltage | 230/460 Volts |
| Phase | 3 |
| Output KW | 2.2 kW |
| Frequency | 60 Hz |
| Speed | 3522 RPM |
| Current | 4.0 Amps |
| Enclosure | TEFC |
| Frame Size | 182TC |
| Motor Orientation | Horizontal |
| Number of Poles | 2 |
| Mounting Type | Rigid base |
| Frame Material | Rolled Steel |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 86.50% |
| Duty Rating | Continous |
| Overload Protector | No |
| Electrical Type | Squirrel Cage Inverter Rated |
| Starting Method | Line Or Inverter |
| Design Code | B |
| KVA Code | J |
| Frame Length | 5.85 in |
| Shaft Diameter | 1.125 in |
| Insulation Class | F |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 2.75 in |
| Shaft Rotation | Reversible |
| Shaft Type | T |
| Ambient Temperature | 40 °C |
| Agency Approvals | UL, CSA, CE |
