Brand: Marathon
SKU: 213TTFW16082

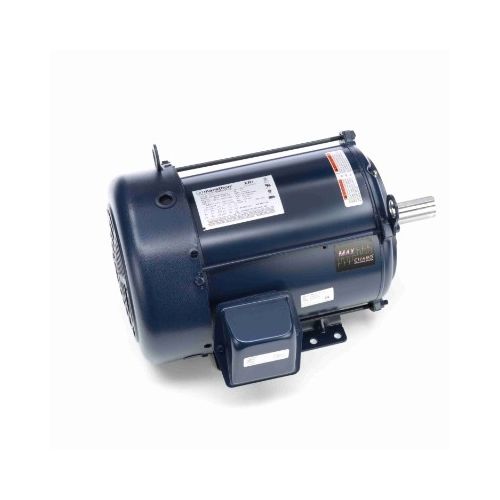

Marathon 213TTFW16082, General Purpose Motor, 3 HP, 200 Volts, 10.1 Amps, 3 Phase, 1170 RPM, 60 Hz, TEFC Enclosure, 213T Frame, Rigid base, Footless Mounted, Rolled Steel Frame, Catalog No: E2161
Marathon General Purpose Three Phase Totally Enclosed Fan Cooled
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Mechanically locked on shaft end
- Class F insulation
- Rated 60/50 hertz, 190/380 or 380 volt, at next lower horsepower
- Motor will not accept a brake kit
- CR200 corona resistant magnet wire
- Bolt-on, removable rigid base, for footless mounting option
- Suitable for horizontal and vertical mounting
Note: Picture is illustrative and may not reflect the actual product.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Marathon 213TTFW16082, General Purpose Motor, 3 HP, 200 Volts, 10.1 Amps, 3 Phase, 1170 RPM, 60 Hz, TEFC Enclosure, 213T Frame, Rigid base, Footless Mounted, Rolled Steel Frame, Catalog No: E2161 | 1 | $1,795.10/each |
Description
Marathon General Purpose Three Phase Totally Enclosed Fan Cooled
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Mechanically locked on shaft end
- Class F insulation
- Rated 60/50 hertz, 190/380 or 380 volt, at next lower horsepower
- Motor will not accept a brake kit
- CR200 corona resistant magnet wire
- Bolt-on, removable rigid base, for footless mounting option
- Suitable for horizontal and vertical mounting
Note: Picture is illustrative and may not reflect the actual product.
Specifications
| Brand | Marathon |
| Catalog No | E2161 |
| Product Type | General Purpose Motor |
| Horsepower | 3 HP |
| Voltage | 200 Volts |
| Phase | 3 |
| Output KW | 2.2 kW |
| Frequency | 60 Hz |
| Speed | 1170 RPM |
| Current | 10.1 Amps |
| Enclosure | TEFC |
| Frame Size | 213T |
| Motor Orientation | Horizontal |
| Number of Poles | 6 |
| Mounting Type | Rigid base |
| Frame Material | Rolled Steel |
| Overall Length | 18.73 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 89.50% |
| Duty Rating | Continous |
| Overload Protector | No |
| Electrical Type | Squirrel Cage Inverter Rated |
| Starting Method | Line Or Inverter |
| Design Code | B |
| KVA Code | K |
| Frame Length | 9.65 in |
| Shaft Diameter | 1.375 in |
| Insulation Class | F |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 3.47 in |
| Shaft Rotation | Reversible |
| Shaft Type | T |
| Ambient Temperature | 40 °C |
| Agency Approvals | UL, CSA, CE |
