Brand: Marathon
SKU: 184TTFCD6080
Marathon 184TTFCD6080, General Purpose Motor, 2 HP, 575 Volts, 2.4 Amps, 3 Phase, 1173 RPM, 60 Hz, TEFC Enclosure, 184T Frame, Rigid base, Footless Mounted, Cast Iron Frame, Catalog No: GT1108A
Marathon General Purpose Three Phase Totally Enclosed Fan Cooled
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Mechanically locked on shaft end
- Class F insulation
- Rated 60/50 hertz, 190/380 or 380 volt, at next lower horsepower
- CR200 corona resistant magnet wire
- Bolt-on, removable rigid base, for footless mounting option
- Suitable for horizontal and vertical design
- F1 mounting only, cannot reassemble to F2

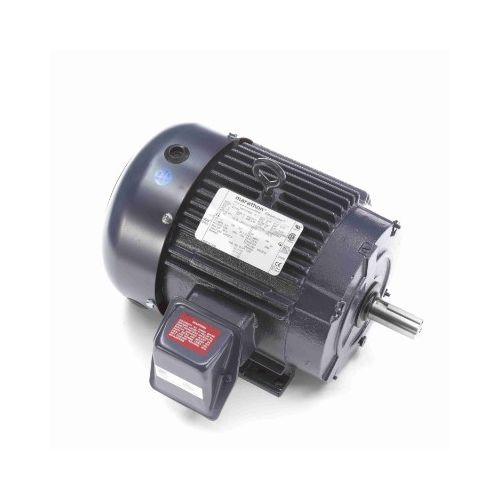

Note: Picture is illustrative and may not reflect the actual product.
Key Features:
The Following Was Added To Your Shopping Cart
Description
Marathon General Purpose Three Phase Totally Enclosed Fan Cooled
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Mechanically locked on shaft end
- Class F insulation
- Rated 60/50 hertz, 190/380 or 380 volt, at next lower horsepower
- CR200 corona resistant magnet wire
- Bolt-on, removable rigid base, for footless mounting option
- Suitable for horizontal and vertical design
- F1 mounting only, cannot reassemble to F2
Note: Picture is illustrative and may not reflect the actual product.
Specifications
| Brand | Marathon |
| Catalog No | GT1108A |
| Product Type | General Purpose Motor |
| Horsepower | 2 HP |
| Voltage | 575 Volts |
| Phase | 3 |
| Output KW | 1.5 kW |
| Frequency | 60 Hz |
| Speed | 1173 RPM |
| Current | 2.4 Amps |
| Enclosure | TEFC |
| Frame Size | 184T |
| Motor Orientation | Horizontal |
| Number of Poles | 6 |
| Mounting Type | Rigid base |
| Frame Material | Cast Iron |
| Overall Length | 14.97 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 88.50% |
| Duty Rating | Continous |
| Overload Protector | No |
| Electrical Type | Squirrel Cage Inverter Rated |
| Starting Method | Line Or Inverter |
| Design Code | B |
| KVA Code | K |
| Shaft Diameter | 1.125 in |
| Insulation Class | F |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 2.75 in |
| Shaft Rotation | Reversible |
| Shaft Type | T |
| Ambient Temperature | 40 °C |
| Agency Approvals | UL, CSA, CE |
