Brand: Leeson
SKU: 121184.00

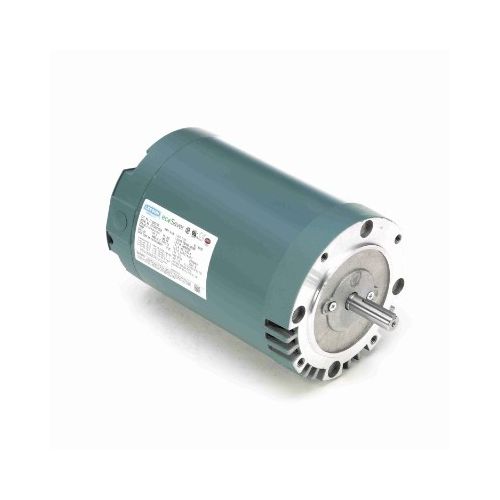

Leeson 121184.00, General Purpose, 2 HP, 115/208-230 Volts, 10.0 Amps, 1 Phase, 3450 RPM, 60 Hz, ODP Enclosure, 145TC Frame, Round, Footless Mounted, Rolled Steel Frame, Model no: C145C34DC4B
_Leeson General Purpose Single Phase(ODP) Open Drip Proof
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Leeson 121184.00, General Purpose, 2 HP, 115/208-230 Volts, 10.0 Amps, 1 Phase, 3450 RPM, 60 Hz, ODP Enclosure, 145TC Frame, Round, Footless Mounted, Rolled Steel Frame, Model no: C145C34DC4B | 1 | $1,078.73/each |
Description
_Leeson General Purpose Single Phase(ODP) Open Drip Proof
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Specifications
| Brand | Leeson |
| Model no | C145C34DC4B |
| Product Type | General Purpose |
| Horsepower | 2 HP |
| Voltage | 115/208-230 Volts |
| Phase | 1 |
| Output KW | 1.5 kW |
| Frequency | 60 Hz |
| Speed | 3450 RPM |
| Current | 10.0 Amps |
| Enclosure | ODP |
| Frame Size | 145TC |
| Motor Orientation | Horizontal |
| Number of Poles | 2 |
| Mounting Type | Round |
| Frame Material | Rolled Steel |
| Overall Length | 12.28 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 77% |
| Duty Rating | Continuous |
| Overload Protector | No |
| Electrical Type | Capacitor Start Induction Run |
| Starting Method | Across The Line |
| Design Code | L |
| KVA Code | J |
| Frame Length | 7.00 in |
| Shaft Diameter | 0.875 in |
| Insulation Class | B |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 2.25 in |
| Shaft Rotation | Selective Counterclockwise |
| Shaft Type | T |
| Ambient Temperature | 40 °C |
| Agency Approvals | UL, CSA, CE |
