Brand: Leeson
SKU: 092116.00

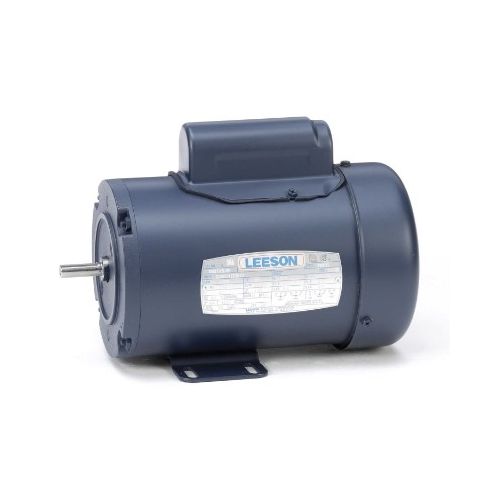

Leeson 092116.00, General Purpose, 17/100 HP, 115/208-230 Volts, 2.1 Amps, 1 Phase, 1725 RPM, 60 Hz, TEFC Enclosure, 42 Frame, Rigid Base, Footless Mounted, Rolled Steel Frame, Model no: C42C17FB1C
Leeson General Purpose Single Phase Enclosed (TEFC)
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
Description
Leeson General Purpose Single Phase Enclosed (TEFC)
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Specifications
| Brand | Leeson |
| Model no | C42C17FB1C |
| Product Type | General Purpose Motor |
| Horsepower | 17/100 HP |
| Voltage | 115/208-230 Volts |
| Phase | 1 |
| Output KW | 0.13 kW |
| Frequency | 60 Hz |
| Speed | 1725 RPM |
| Current | 2.1 Amps |
| Enclosure | TEFC |
| Frame Size | 42 |
| Motor Orientation | Horizontal |
| Number of Poles | 4 |
| Mounting Type | Rigid Base |
| Frame Material | Rolled Steel |
| Overall Length | 9.44 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 50% |
| Duty Rating | Continuous |
| Overload Protector | No |
| Electrical Type | Capacitor Start Induction Run |
| Starting Method | Across The Line |
| Design Code | L |
| KVA Code | N |
| Frame Length | 6.00 in |
| Shaft Diameter | 0.375 in |
| Insulation Class | B |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 1.12 in |
| Shaft Rotation | Selective Counterclockwise |
| Shaft Type | Single Special Extension |
| Ambient Temperature | 40 °C |
| Agency Approvals | UL, CSA, CE |
