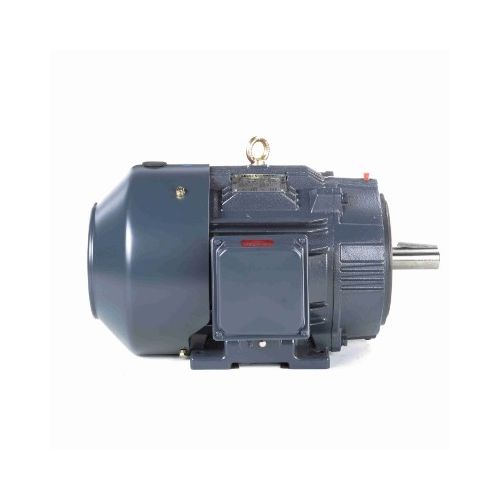

Brand: Leeson
SKU: B199059.00
Leeson B199059.00, General Purpose, 15 HP, 230/460 Volts, 17.8 Amps, 3 Phase, 3545 RPM, 60 Hz, TEFC Enclosure, 254TC Frame, Rigid Base, Footless Mounted, Cast Iron Frame, Model no: C254T34FK16AA
Leeson General Purpose Three Phase Enclosed
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Leeson B199059.00, General Purpose, 15 HP, 230/460 Volts, 17.8 Amps, 3 Phase, 3545 RPM, 60 Hz, TEFC Enclosure, 254TC Frame, Rigid Base, Footless Mounted, Cast Iron Frame, Model no: C254T34FK16AA | 1 | $2,610.77/each |
Description
Leeson General Purpose Three Phase Enclosed
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Specifications
| Brand | Leeson |
| Model no | C254T34FK16AA |
| Product Type | General Purpose Motor |
| Horsepower | 15 HP |
| Voltage | 230/460 Volts |
| Phase | 3 |
| Output KW | 11.2 kW |
| Frequency | 60 Hz |
| Speed | 3545 RPM |
| Current | 17.8 Amps |
| Enclosure | TEFC |
| Frame Size | 254TC |
| Motor Orientation | Horizontal |
| Number of Poles | 2 |
| Mounting Type | Rigid Base |
| Frame Material | Cast Iron |
| Overall Length | 24.65 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 91% |
| Duty Rating | Continuous |
| Overload Protector | No |
| Electrical Type | Squirrel Cage Inverter Rated |
| Starting Method | Line Or Inverter |
| Design Code | B |
| KVA Code | G |
| Frame Length | 10.00 in |
| Shaft Diameter | 1.625 in |
| Insulation Class | F |
| Opp Drive End Bearing | BALL |
| Drive End Bearing | BALL |
| Shaft Extension Location | 4 in |
| Shaft Rotation | Reversible |
| Shaft Type | T |
| Ambient Temperature | 40 °C |
| Agency Approvals | UL, CSA, CE |
