Brand: Marathon
SKU: 256TTDBD6076
Marathon 256TTDBD6076, General Purpose Motor, 10 HP, 230/460 Volts, 12.8 Amps, 3 Phase, 1182 RPM, 60 Hz, ODP Enclosure, 256T Frame, Rigid base, Footless Mounted, Rolled Steel Frame, Catalog No: GT0058

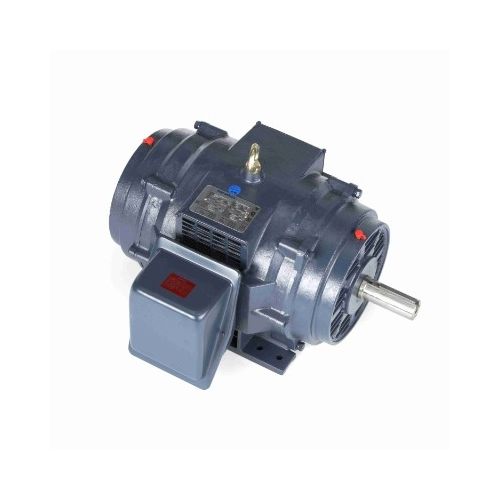

Marathon General Purpose Three Phase Open Drip Proof
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Mechanically locked on shaft end
- F1 mounting only, cannot reassemble to F2
Note:Picture is illustrative and may not reflect the actual product.
Key Features:
The Following Was Added To Your Shopping Cart
Description
Marathon General Purpose Three Phase Open Drip Proof
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Mechanically locked on shaft end
- F1 mounting only, cannot reassemble to F2
Note:Picture is illustrative and may not reflect the actual product.
Specifications
| Brand | Marathon |
| Catalog No | GT0058 |
| Product Type | General Purpose Motor |
| Horsepower | 10 HP |
| Voltage | 230/460 Volts |
| Phase | 3 |
| Output KW | 7.5 kW |
| Frequency | 60 Hz |
| Speed | 1182 RPM |
| Current | 12.8 Amps |
| Enclosure | ODP |
| Frame Size | 256T |
| Motor Orientation | Horizontal |
| Number of Poles | 6 |
| Mounting Type | Rigid Base |
| Frame Material | Rolled Steel |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 91.70% |
| Duty Rating | Continous |
| Overload Protector | No |
| Electrical Type | Squirrel Cage Inverter Rated |
| Starting Method | Line Or Inverter |
| Design Code | B |
| KVA Code | H |
| Frame Length | 12.20 in |
| Shaft Diameter | 1.625 in |
| Insulation Class | F |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 4 in |
| Shaft Rotation | Reversible |
| Shaft Type | T |
| Ambient Temperature | 40 °C |
| Agency Approvals | UL, CSA, CE |
