Brand: Marathon
SKU: 213TTDWD16024

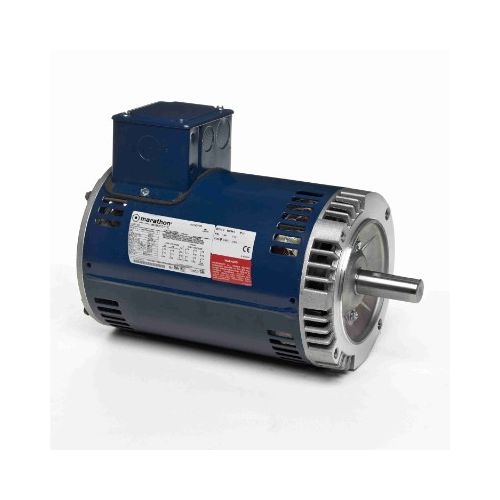

Marathon 213TTDWD16024, General Purpose Motor, 10 HP, 230/460 Volts, 12.1 Amps, 3 Phase, 3530 RPM, 60 Hz, ODP Enclosure, 213TC Frame, Round, Footless Mounted, Rolled Steel Frame, Catalog No: C106B
Marathon General Purpose Three Phase Open Drip Proof
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- SMR compliant efficiency
- Will accept C-Face Kits, see Accessories Section (except as noted)
Note:Picture is illustrative and may not reflect the actual product.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Marathon 213TTDWD16024, General Purpose Motor, 10 HP, 230/460 Volts, 12.1 Amps, 3 Phase, 3530 RPM, 60 Hz, ODP Enclosure, 213TC Frame, Round, Footless Mounted, Rolled Steel Frame, Catalog No: C106B | 1 | $1,481.26/each |
Description
Marathon General Purpose Three Phase Open Drip Proof
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- SMR compliant efficiency
- Will accept C-Face Kits, see Accessories Section (except as noted)
Note:Picture is illustrative and may not reflect the actual product.
Specifications
| Brand | Marathon |
| Catalog No | C106B |
| Product Type | General Purpose Motor |
| Horsepower | 10 HP |
| Voltage | 230/460 Volts |
| Phase | 3 |
| Output KW | 7.5 kW |
| Frequency | 60 Hz |
| Speed | 3530 RPM |
| Current | 12.1 Amps |
| Enclosure | ODP |
| Frame Size | 213TC |
| Motor Orientation | Horizontal |
| Number of Poles | 2 |
| Mounting Type | Round |
| Frame Material | Rolled Steel |
| Overall Length | 18.03 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 90.20% |
| Duty Rating | Continous |
| Overload Protector | No |
| Electrical Type | Squirrel Cage Induction Run |
| Starting Method | Across The Line |
| Design Code | B |
| KVA Code | G |
| Frame Length | 11.15 in |
| Shaft Diameter | 1.375 in |
| Insulation Class | B |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 3.12 in |
| Shaft Rotation | Reversible |
| Shaft Type | T |
| Ambient Temperature | 40 °C |
| Agency Approvals | UL, CSA, CE |
