Brand: Marathon
SKU: 056T34F5940

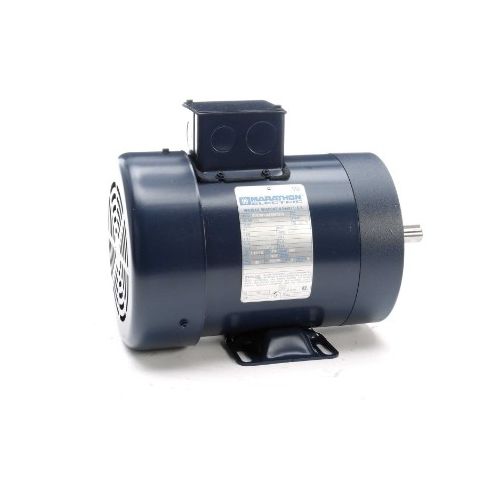

Marathon 056T34F5940, General Purpose Motor, 1 HP, 208-230/460 Volts, 1.4 Amps, 3 Phase, 3490 RPM, 60 Hz, TEFC Enclosure, 56C Frame, Rigid Base, Footless Mounted, Rolled Steel Frame, Catalog No: E2000
Marathon General Purpose Three Phase Totally Enclosed Fan Cooled
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Mechanically locked on shaft end
- Class F insulation
- 56-145T frame motors, accept brake kits, see accessory kits
- CR200 corona resistant magnet wire
- Bolt-on, removable rigid base, for footless mounting option
- Suitable for horizontal and vertical mounting
- F1 mounting only, cannot reassemble to F2
- 56H, 143T, and 145T combination base with 12 mounting holes
Note: Picture is illustrative and may not reflect the actual product.
Key Features:
The Following Was Added To Your Shopping Cart
Description
Marathon General Purpose Three Phase Totally Enclosed Fan Cooled
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Mechanically locked on shaft end
- Class F insulation
- 56-145T frame motors, accept brake kits, see accessory kits
- CR200 corona resistant magnet wire
- Bolt-on, removable rigid base, for footless mounting option
- Suitable for horizontal and vertical mounting
- F1 mounting only, cannot reassemble to F2
- 56H, 143T, and 145T combination base with 12 mounting holes
Note: Picture is illustrative and may not reflect the actual product.
Specifications
| Brand | Marathon |
| Catalog No | E2000 |
| Product Type | General Purpose Motor |
| Horsepower | 1 HP |
| Voltage | 208-230/460 Volts |
| Phase | 3 |
| Output KW | 0.75 kW |
| Frequency | 60 Hz |
| Speed | 3490 RPM |
| Current | 1.4 Amps |
| Enclosure | TEFC |
| Frame Size | 56C |
| Motor Orientation | Horizontal |
| Number of Poles | 2 |
| Mounting Type | Rigid Base |
| Frame Material | Rolled Steel |
| Overall Length | 11.69 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 80% |
| Duty Rating | Continous |
| Overload Protector | No |
| Electrical Type | Squirrel Cage Inverter Rated |
| Starting Method | Line Or Inverter |
| Design Code | B |
| KVA Code | J |
| Shaft Diameter | 0.625 in |
| Insulation Class | F |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 2.06 in |
| Shaft Rotation | Reversible |
| Shaft Type | T |
| Ambient Temperature | 40 °C |
| Agency Approvals | UL, CSA, CE |
