Brand: Marathon
SKU: 5KC49TN0034

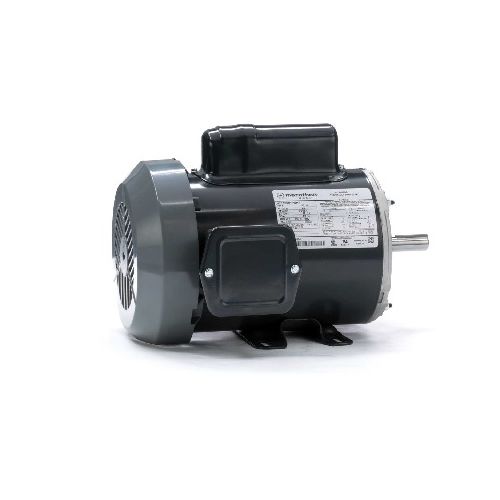

Marathon 5KC49TN0034, General Purpose Motor, 1 HP, 115/230 Volts, 6.6 Amps, 1 Phase, 1725 RPM, 60 Hz, TEFC Enclosure, 56 Frame, Rigid Base, Footless Mounted, Rolled Steel Frame, Catalog No: C275
Marathon General Purpose Three Phase Totally Enclosed Fan Cooled
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Heavy gauge steel constructions
- Economical split phase or capacitor start designs, as noted
Note: Picture is illustrative and may not reflect the actual product.
Key Features:
The Following Was Added To Your Shopping Cart
Description
Marathon General Purpose Three Phase Totally Enclosed Fan Cooled
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Heavy gauge steel constructions
- Economical split phase or capacitor start designs, as noted
Note: Picture is illustrative and may not reflect the actual product.
Specifications
| Brand | Marathon |
| Catalog No | C275 |
| Product Type | General Purpose Motor |
| Horsepower | 1 HP |
| Voltage | 115/230 Volts |
| Phase | 1 |
| Output KW | 0.75 kW |
| Frequency | 60 Hz |
| Speed | 1725 RPM |
| Current | 6.6 Amps |
| Enclosure | TEFC |
| Frame Size | 56 |
| Motor Orientation | Any |
| Number of Poles | 4 |
| Mounting Type | Rigid Base |
| Frame Material | Rolled Steel |
| Overall Length | 12.96 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 72.20% |
| Duty Rating | Continous |
| Overload Protector | N/R |
| Electrical Type | Capacitor start(CSIR) |
| Starting Method | SM |
| KVA Code | K |
| Frame Length | 0.630 in |
| Shaft Diameter | B |
| Insulation Class | Ball |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | 1.88 in |
| Shaft Extension Location | Counterclockwise/Clockwise |
| Shaft Type | 40 °C |
| Ambient Temperature | UL, CSA, CE |
