Brand: Marathon
SKU: 056C17F5323

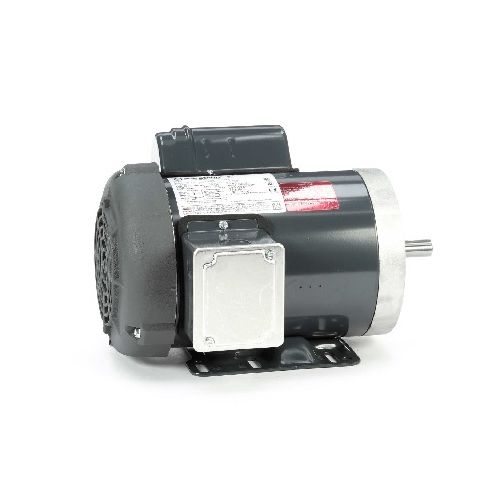

Marathon 056C17F5323, General Purpose Motor, 1 HP, 115/208-230 Volts, 6.7 Amps, 1 Phase, 1725 RPM, 60 Hz, TEFC Enclosure, 56HC Frame, Bolt-on Base, Foot Mounted, Rolled Steel Frame, Catalog No: G573
Marathon General Purpose Three Phase Totally Enclosed Fan Cooled
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Frame constructions are heavy gauge steel or Aluminum, as noted
- Nameplated 60/50 hertz at next lowest horsepower
- Will accept C-Face Kits as noted, also see Accessories section
- Severe duty kits available, see Accessories section
- Shaft slinger, Regreasable bearings (182T and larger), lead lugs (364T and larger), and bearing caps on 444T and larger
Note: Picture is illustrative and may not reflect the actual product.
Key Features:
The Following Was Added To Your Shopping Cart
Description
Marathon General Purpose Three Phase Totally Enclosed Fan Cooled
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Frame constructions are heavy gauge steel or Aluminum, as noted
- Nameplated 60/50 hertz at next lowest horsepower
- Will accept C-Face Kits as noted, also see Accessories section
- Severe duty kits available, see Accessories section
- Shaft slinger, Regreasable bearings (182T and larger), lead lugs (364T and larger), and bearing caps on 444T and larger
Note: Picture is illustrative and may not reflect the actual product.
Specifications
| Brand | Marathon |
| Catalog No | G573 |
| Product Type | General Purpose Motor |
| Horsepower | 1 HP |
| Voltage | 115/208-230 Volts |
| Phase | 1 |
| Output KW | 0.75 kW |
| Frequency | 60 Hz |
| Speed | 1725 RPM |
| Current | 6.7 Amps |
| Enclosure | TEFC |
| Frame Size | 56HC |
| Motor Orientation | Horizontal |
| Number of Poles | 4 |
| Mounting Type | Bolt-on Base |
| Frame Material | Rolled Steel |
| Overall Length | 12.81 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 72% |
| Duty Rating | Continous |
| Overload Protector | No |
| Electrical Type | Capacitor Start Induction Run |
| Starting Method | Across The Line |
| Design Code | N |
| KVA Code | J |
| Frame Length | 0.625 in |
| Shaft Diameter | B |
| Insulation Class | Ball |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | 2.06 in |
| Shaft Extension Location | Selective Counterclockwise |
| Shaft Rotation | NEMA 56 |
| Shaft Type | 40 °C |
| Ambient Temperature | UL, CSA, CE |
