Brand: Leeson
SKU: E100115.00

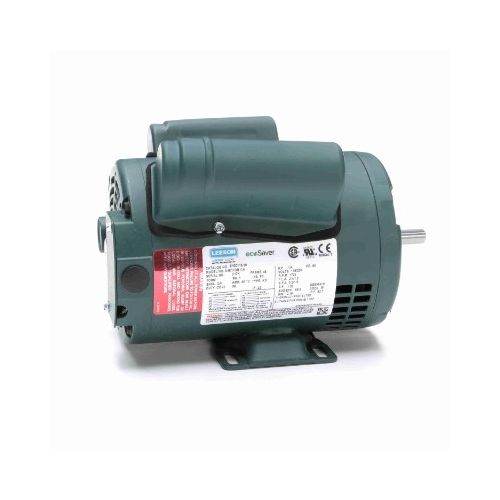

Leeson E100115.00, General Purpose, 1/4 HP, 115/230 Volts, 1.2 Amps, 1 Phase, 1725 RPM, 60 Hz, ODP Enclosure, 48 Frame, Rigid Base, Footless Mounted, Rolled Steel Frame, Model no: A4K17DB11A
Leeson General Purpose Single Phase Open Drip Proof
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
Description
Leeson General Purpose Single Phase Open Drip Proof
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Specifications
| Brand | Leeson |
| Model no | A4K17DB11A |
| Product Type | General Purpose |
| Horsepower | 1/4 HP |
| Voltage | 115/230 Volts |
| Phase | 1 |
| Output KW | 0.19 kW |
| Frequency | 60 Hz |
| Speed | 1725 RPM |
| Current | 1.2 Amps |
| Enclosure | ODP |
| Frame Size | 48 |
| Motor Orientation | Horizontal |
| Number of Poles | 4 |
| Mounting Type | Rigid Base |
| Frame Material | Rolled Steel |
| Overall Length | 10.12 in |
| Service Factor | 1.35 |
| Efficiency @ 100% Load | 68.50% |
| Duty Rating | Continuous |
| Overload Protector | Automatic |
| Electrical Type | Capacitor Start Capacitor Run |
| Starting Method | Across The Line |
| Design Code | N |
| KVA Code | M |
| Frame Length | 6.50 in |
| Shaft Diameter | 0.500 in |
| Insulation Class | F |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 1.5 in |
| Shaft Rotation | Selective Counterclockwise |
| Shaft Type | NEMA 48 |
| Ambient Temperature | 40 °C |
| Agency Approvals | UL, CSA, CE |
