Brand: Leeson
SKU: 110163.00

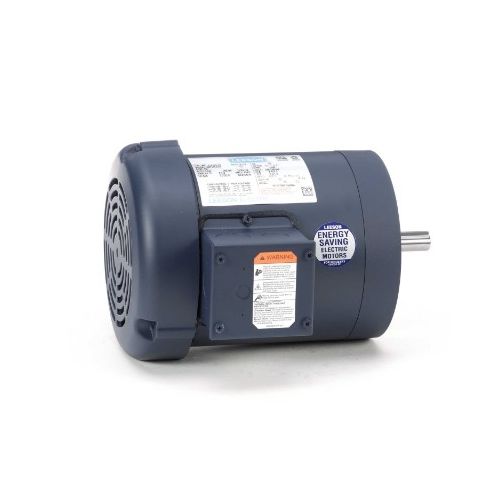

Leeson 110163.00, General Purpose, 1/2 HP, 208-230/460 Volts, 1.2 Amps, 3 Phase, 1140 RPM, 60 Hz, TEFC Enclosure, 56C Frame, Round, Footless Mounted, Rolled Steel Frame, Model no: C6T11FC1H
Leeson General Purpose Three Phase Enclosed
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
Description
Leeson General Purpose Three Phase Enclosed
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Specifications
| Brand | Leeson |
| Model no | C6T11FC1H |
| Product Type | General Purpose Motor |
| Horsepower | 1/2 HP |
| Voltage | 208-230/460 Volts |
| Phase | 3 |
| Output KW | 0.37 kW |
| Frequency | 60 Hz |
| Speed | 1140 RPM |
| Current | 1.2 Amps |
| Enclosure | TEFC |
| Frame Size | 56C |
| Motor Orientation | Horizontal |
| Number of Poles | 6 |
| Mounting Type | Round |
| Frame Material | Rolled Steel |
| Overall Length | 10.98 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 70% |
| Duty Rating | Continuous |
| Overload Protector | No |
| Electrical Type | Squirrel Cage Induction Run |
| Starting Method | Across The Line |
| Design Code | B |
| KVA Code | K |
| Frame Length | 5.50 in |
| Shaft Diameter | 0.625 in |
| Insulation Class | B |
| Opp Drive End Bearing | BALL |
| Drive End Bearing | BALL |
| Shaft Extension Location | 1.88 in |
| Shaft Rotation | Reversible |
| Shaft Type | NEMA 56 |
| Ambient Temperature | 40 °C |
| Agency Approvals | UL, CSA, CE |
