Brand: Marathon
SKU: 048S17D2106

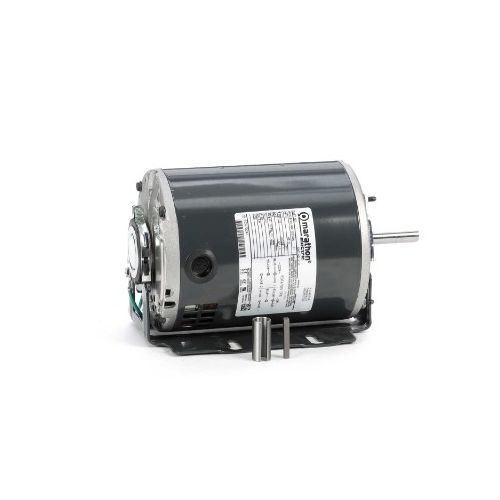

Marathon 048S17D2106, General Purpose Motor, 1/2 HP, 115 Volts, 9.2 Amps, 1 Phase, 1725 RPM, 60 Hz, ODP Enclosure, 48Z Frame, Resilient Base, Footless Mounted, Rolled Steel Frame, Catalog No: S128
Marathon General Purpose Three Phase Open Drip Proof
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- 182T-215T models steel frame, 254T-449T models cast iron frame
- Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque
- Class F Insulation
- Standard assembly F1, reversible to F2 assembly
Note:Picture is illustrative and may not reflect the actual product.
Key Features:
The Following Was Added To Your Shopping Cart
Description
Marathon General Purpose Three Phase Open Drip Proof
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- 182T-215T models steel frame, 254T-449T models cast iron frame
- Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque
- Class F Insulation
- Standard assembly F1, reversible to F2 assembly
Note:Picture is illustrative and may not reflect the actual product.
Specifications
| Brand | Marathon |
| Catalog No | S128 |
| Product Type | General Purpose Motor |
| Horsepower | 1/2 HP |
| Voltage | 115 Volts |
| Phase | 1 |
| Output KW | 0.37 kW |
| Frequency | 60 Hz |
| Speed | 1725 RPM |
| Current | 9.2 Amps |
| Enclosure | ODP |
| Frame Size | 48Z |
| Motor Orientation | Horizontal |
| Number of Poles | 4 |
| Mounting Type | Resilient Base |
| Frame Material | Rolled Steel |
| Overall Length | 10.22 in |
| Service Factor | 1 |
| Efficiency @ 100% Load | 65% |
| Duty Rating | Continous |
| Overload Protector | Automaticmatic |
| Electrical Type | Split Phase |
| Starting Method | Across The Line |
| Design Code | NO DESIGN CODE |
| KVA Code | N |
| Shaft Diameter | 0.500 in |
| Insulation Class | B |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 1.88 in |
| Shaft Rotation | Selective Counterclockwise |
| Shaft Type | Single Special Extension |
| Ambient Temperature | 40 °C |
| Agency Approvals | UL, CSA, CE |
