Brand: Marathon
SKU: 5KH36JNA769

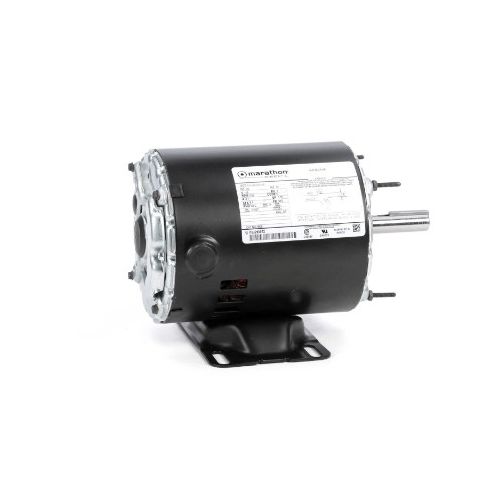

Marathon 5KH36JNA769, General Purpose Motor, 1/2 HP, 115 Volts, 8.1 Amps, 1 Phase, 1725 RPM, 60 Hz, ODP Enclosure, 56Z Frame, Rigid Base, Footless Mounted, Rolled Steel Frame, Catalog No: H905
Marathon General Purpose Three Phase Open Drip Proof
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Heavy gauge steel frame and base
- Shaft extension 2-1/4' long by 5/8' diameter
- Steel endshields
Note:Picture is illustrative and may not reflect the actual product.
Key Features:
The Following Was Added To Your Shopping Cart
Description
Marathon General Purpose Three Phase Open Drip Proof
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Heavy gauge steel frame and base
- Shaft extension 2-1/4' long by 5/8' diameter
- Steel endshields
Note:Picture is illustrative and may not reflect the actual product.
Specifications
| Brand | Marathon |
| Catalog No | H905 |
| Product Type | General Purpose Motor |
| Horsepower | 1/2 HP |
| Voltage | 115 Volts |
| Phase | 1 |
| Output KW | 0.37 kW |
| Frequency | 60 Hz |
| Speed | 1725 RPM |
| Current | 8.1 Amps |
| Enclosure | ODP |
| Frame Size | 56Z |
| Motor Orientation | HOR |
| Number of Poles | 4 |
| Mounting Type | Rigid Base |
| Frame Material | Rolled Steel |
| Overall Length | 10.89 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 65.40% |
| Duty Rating | Continous |
| Overload Protector | N/R |
| Electrical Type | Split Phase |
| Starting Method | SM |
| KVA Code | N |
| Frame Length | 6.22 in |
| Shaft Diameter | 0.63 in |
| Insulation Class | B |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 2.25 in |
| Shaft Rotation | Counterclockwise/Clockwise |
| Ambient Temperature | 40 °C |
| Agency Approvals | UL, CSA, CE |
