Brand: Marathon
SKU: 182TTTS6076

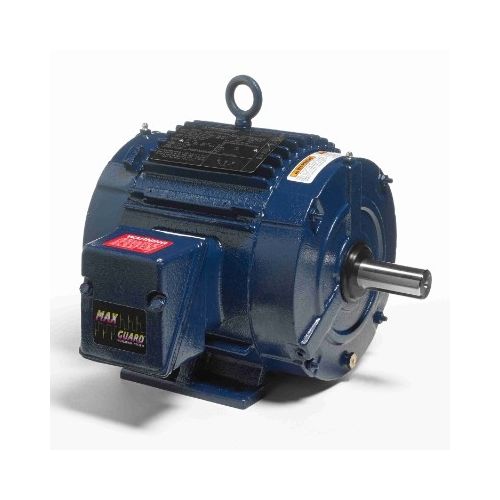

Marathon 182TTTS6076, General Purpose Motor, 1-1/2 HP, 230/460 Volts, 2.2 Amps, 3 Phase, 1175 RPM, 60 Hz, TENV Enclosure, 182T Frame, Rigid Base, Footless Mounted, Cast Iron Frame, Catalog No: E231
Marathon General Purpose Three Phase Totally Enclosed Non-Ventilated
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- Class F insulation
Note:Picture is illustrative and may not reflect the actual product.
Key Features:
The Following Was Added To Your Shopping Cart
Description
Marathon General Purpose Three Phase Totally Enclosed Non-Ventilated
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- Class F insulation
Note:Picture is illustrative and may not reflect the actual product.
Specifications
| Brand | Marathon |
| Catalog No | E231 |
| Product Type | General Purpose Motor |
| Horsepower | 1-1/2 HP |
| Voltage | 230/460 Volts |
| Phase | 3 |
| Output KW | 1.1 kW |
| Frequency | 60 Hz |
| Speed | 1175 RPM |
| Current | 2.2 Amps |
| Enclosure | TENV |
| Frame Size | 182T |
| Motor Orientation | Horizontal |
| Number of Poles | 6 |
| Mounting Type | Rigid base |
| Frame Material | Cast Iron |
| Overall Length | 12.71 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 87.50% |
| Duty Rating | Continous |
| Overload Protector | No |
| Electrical Type | Squirrel Cage Induction Run |
| Starting Method | Across The Line |
| Design Code | B |
| KVA Code | L |
| Frame Length | 5.75 in |
| Shaft Diameter | 1.125 in |
| Insulation Class | F |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 2.78 in |
| Shaft Rotation | Reversible |
| Shaft Type | T |
| Ambient Temperature | 40 °C |
| Agency Approvals | UL, CSA, CE |
