Brand: Marathon
SKU: 145TBFR5327
Marathon 145TBFR5327, General Purpose Motor, 1-1/2 HP, 115/208-230 Volts, 7.6 Amps, 1 Phase, 1740 RPM, 60 Hz, TEFC Enclosure, 145T Frame, Rigid Base, Footless Mounted, Rolled Steel Frame, Catalog No: I201
Marathon General Purpose Three Phase Totally Enclosed Fan Cooled
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Motor will accept a C-face kit
- Suitable for use on a VFD
- Class F Insulation
- Ball bearings
- Design B

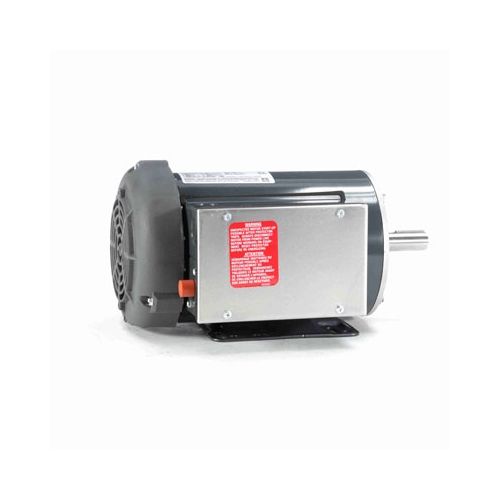

Note: Picture is illustrative and may not reflect the actual product.
Key Features:
The Following Was Added To Your Shopping Cart
Description
Marathon General Purpose Three Phase Totally Enclosed Fan Cooled
The Marathon brand has a developed reputation for conservative motor designs and highly engineered products used in a vast array of commercial and industrial applications around the world. We build on our legacy of innovative and efficient motor designs by the joining of magnetic and motor into a single leading technology. This allows for unparalleled power densities, unprecedented performance, and unmatched efficiencies
Feature:
- Motor will accept a C-face kit
- Suitable for use on a VFD
- Class F Insulation
- Ball bearings
- Design B
Note: Picture is illustrative and may not reflect the actual product.
Specifications
| Brand | Marathon |
| Catalog No | I201 |
| Product Type | General Purpose Motor |
| Horsepower | 1-1/2 HP |
| Voltage | 115/208-230 Volts |
| Phase | 1 |
| Output KW | 1.1 kW |
| Frequency | 60 Hz |
| Speed | 1740 RPM |
| Current | 7.6 Amps |
| Enclosure | TEFC |
| Frame Size | 145T |
| Motor Orientation | Horizontal |
| Number of Poles | 4 |
| Mounting Type | Rigid Base |
| Frame Material | Rolled Steel |
| Overall Length | 13.87 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 80% |
| Duty Rating | Continous |
| Overload Protector | Manual |
| Electrical Type | Capacitor Start Capacitor Run |
| Starting Method | Across The Line |
| Design Code | L |
| KVA Code | J |
| Frame Length | 0.875 in |
| Shaft Diameter | B |
| Insulation Class | Ball |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | 2.28 in |
| Shaft Extension Location | Selective Counterclockwise |
| Shaft Rotation | T |
| Shaft Type | 40 °C |
| Ambient Temperature | UL, CSA, CE |
