Brand: Franklin Electric
SKU: 93160186

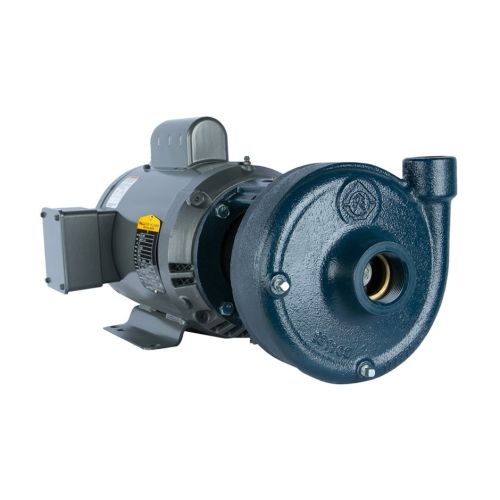

Franklin Electric 93160186, Model 5FPDA1B-T, Close-Coupled Centrifugal Pump, DA1B Series, 208-230/460 Volts, 1/2 HP, 1"NPT Discharge, 3 Phase, Enclosure ODP, 3600 RPM
Close-Coupled Centrifugal Pump D Series
The robust D Series centrifugal pumps come standard with heavy-duty cast iron bodies for durability and dynamically balanced impellers for reduced bearing loads and pump longevity. With models ranging from 0.5 to 50 hp, single- and three-phase motor options, as well as TEFC and ODP enclosure options, these pumps are sure to meet the demands of various applications.
Features:
- Heavy-duty cast iron body for increased durability
- DA1A and DA1B have stainless steel impellers
- DB1 through DB2/DC2 have bronze impellers
- DC4 has cast iron impellers
- 1/2-2HP models have 56C frame motors with shaft coupling design for easy removal of pump motor
- JM frame motors utilize a shaft sleeve/O-ring design for added protection against shaft damage
- Single- or three-phase motors with ODP and TEFC options available on selected models
- Seal comprised of carbon/ceramic faces, nitrile elastomers and 300-series stainless components
Application:
- Irrigation
- Commercial
- Construction
- Municipal
- Light Industrial
- General Services
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Franklin Electric 93160186, Model 5FPDA1B-T, Close-Coupled Centrifugal Pump, DA1B Series, 208-230/460 Volts, 1/2 HP, 1"NPT Discharge, 3 Phase, Enclosure ODP, 3600 RPM | 1 | $1,183.20/each |
Description
Close-Coupled Centrifugal Pump D Series
The robust D Series centrifugal pumps come standard with heavy-duty cast iron bodies for durability and dynamically balanced impellers for reduced bearing loads and pump longevity. With models ranging from 0.5 to 50 hp, single- and three-phase motor options, as well as TEFC and ODP enclosure options, these pumps are sure to meet the demands of various applications.
Features:
- Heavy-duty cast iron body for increased durability
- DA1A and DA1B have stainless steel impellers
- DB1 through DB2/DC2 have bronze impellers
- DC4 has cast iron impellers
- 1/2-2HP models have 56C frame motors with shaft coupling design for easy removal of pump motor
- JM frame motors utilize a shaft sleeve/O-ring design for added protection against shaft damage
- Single- or three-phase motors with ODP and TEFC options available on selected models
- Seal comprised of carbon/ceramic faces, nitrile elastomers and 300-series stainless components
Application:
- Irrigation
- Commercial
- Construction
- Municipal
- Light Industrial
- General Services
Specifications
| Model | 5FPDA1B-T |
| Product Type | Close-Coupled Centrifugal Pump |
| Series | D Series |
| Voltage | 208-230/460 Volts |
| Horsepower | 1/2 HP |
| Discharge Size | 1-1/4?1"NPT Discharge |
| Phase | 3 Phase |
| Enclosure | ODP |
| Impeller Trim | 3.75 |
| Motor Fit Code | 56C |
| Speed | 3600 RPM |
| S.F Amps (230 Volts) | 4.7 |
| S.F Amps (460 Volts) | 2.3 |
