Brand: Leeson
SKU: 102965.00

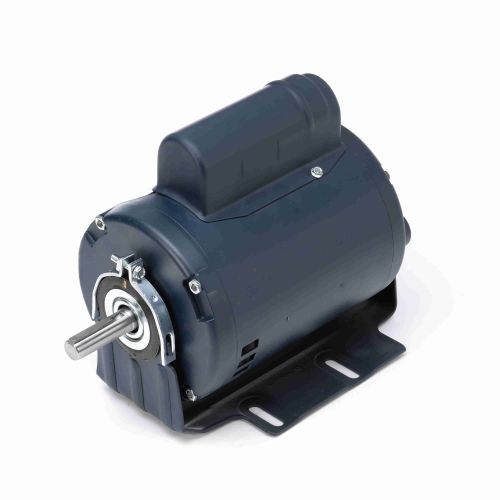

Leeson 102965.00, Fan and Blower HVAC Motor, 1/2 HP, 277 Volts, 3.7 Amps, 1 Phase, 1725 RPM, ODP Enclosure, S56 Frame, Resilient Base, Rolled Steel Frame, Model no: A4C17DJ74B
Leeson Fan and Blower HVAC Motor
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Leeson 102965.00, Fan and Blower HVAC Motor, 1/2 HP, 277 Volts, 3.7 Amps, 1 Phase, 1725 RPM, ODP Enclosure, S56 Frame, Resilient Base, Rolled Steel Frame, Model no: A4C17DJ74B | 1 | $667.10/each |
Description
Leeson Fan and Blower HVAC Motor
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Specifications
| Brand | Leeson |
| Model no | A4C17DJ74B |
| Product Type | Fan and Blower HVAC Motor |
| Horsepower | 1/2 HP |
| Voltage | 277 Volts |
| Phase | 1 |
| Output KW | 0.37 kW |
| Frequency | 60 Hz |
| Speed | 1725 RPM |
| Current | 3.7 Amps |
| Enclosure | ODP |
| Frame Size | S56 |
| Motor Orientation | Horizontal |
| Number of Poles | 4 |
| Mounting Type | Resilient Base |
| Frame Material | Rolled Steel |
| Overall Length | 10.81 in |
| Service Factor | 1.25 |
| Efficiency @ 100% Load | 62% |
| Duty Rating | Continuous |
| Overload Protector | Automatic |
| Electrical Type | Capacitor Start Induction Run |
| Starting Method | Across The Line |
| Design Code | N |
| KVA Code | K |
| Frame Length | 6.00 in |
| Shaft Diameter | 0.625 in |
| Insulation Class | B |
| Opp Drive End Bearing | Ball |
| Drive End Bearing | Ball |
| Shaft Extension Location | 1.88 in |
| Shaft Rotation | Selective Counterclockwise |
| Shaft Type | NEMA 56 |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, UL, CE |
