Brand: Baldor
SKU: CECG334020T

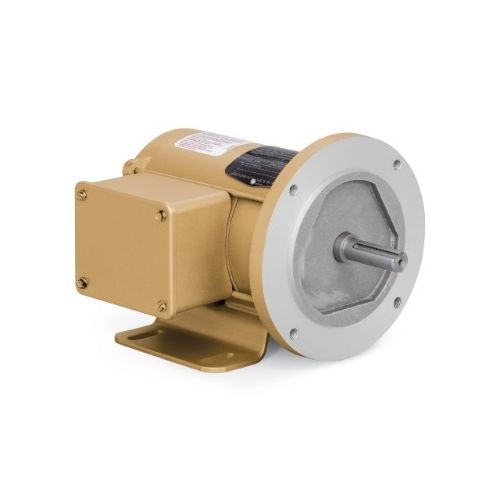

Baldor CECG334020T, EC Gold Series HVAC Motor, 2 HP, 230 Volts, 5.7 Amps, 1800 RPM, TENV Enclosure, 145TC Frame, Steel Frame
Baldor EC Gold series Motors General Purpose
The EC Gold series is a synchronous PM motor designed to be a highly efficient, compact package that is interchangeable with standard induction motors. All frame sizes meet NEMA dimensions for ease of installation and retrofitting. The platform is designed to be used with and industrial PM drive while simplifying component replacement compared to similar integral solutions. The synchronous PM design offers excellent speed regulation with no feedback required and maintains high efficiency over a wider range of speed than traditional induction motors. Ideal for applications that require a smaller footprint and quick ROI.
Features
- TENV enclosure standard, TEAO rating available
- Efficiencies meet or exceed IE4
- IP54 rated
- Windings are rated for 155°C
- CE/cRUus certification
- Foot and face mounting as standard with options for foot or face only
Applications
- Pumps
- Fans
- Conveyors
- Machine tools
- Gear reducers
Note: Picture is illustrative and may not reflect the actual product
"Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Baldor CECG334020T, EC Gold Series HVAC Motor, 2 HP, 230 Volts, 5.7 Amps, 1800 RPM, TENV Enclosure, 145TC Frame, Steel Frame | 1 | $0.00/each |
Description
Baldor EC Gold series Motors General Purpose
The EC Gold series is a synchronous PM motor designed to be a highly efficient, compact package that is interchangeable with standard induction motors. All frame sizes meet NEMA dimensions for ease of installation and retrofitting. The platform is designed to be used with and industrial PM drive while simplifying component replacement compared to similar integral solutions. The synchronous PM design offers excellent speed regulation with no feedback required and maintains high efficiency over a wider range of speed than traditional induction motors. Ideal for applications that require a smaller footprint and quick ROI.
Features
- TENV enclosure standard, TEAO rating available
- Efficiencies meet or exceed IE4
- IP54 rated
- Windings are rated for 155°C
- CE/cRUus certification
- Foot and face mounting as standard with options for foot or face only
Applications
- Pumps
- Fans
- Conveyors
- Machine tools
- Gear reducers
Note: Picture is illustrative and may not reflect the actual product
"Specifications
| Brand | Baldor |
| Mfg. Number | CECG334020T |
| Product Type | EC Gold Series HVAC Motor |
| Horsepower | 2 HP |
| Voltage | 230 Volts |
| Current | 5.7 Amps |
| Enclosure | TENV |
| Speed | 1800 RPM |
| Frame Size | 145TC |
| Frame Material | Steel |
| Duty Rating | CONT |
| Motor Lead Quantity/Wire Size | 3 @ 18 AWG |
| Motor Standards | NEMA |
| Base Indicator | Rigid |
| Nameplate Output | 2 |
| Shaft Rotation | Reversible |
| Thermal Device - Winding | Normally Closed Thermostat |
