Brand: Deming
SKU: DEM717240661051

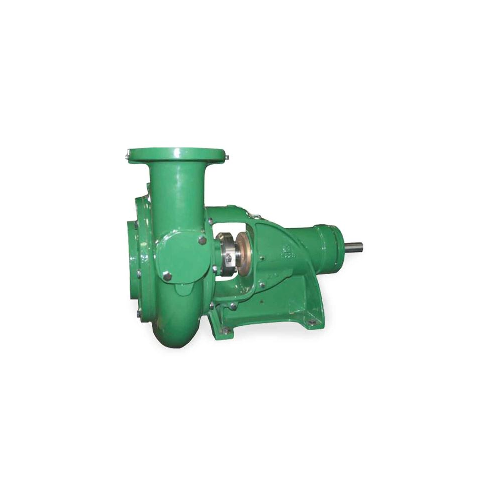

Deming DEM717240661051, 4x4x12x3, Dry Pit Solids Handling, Horizontal Mounted Sewage Pump, 7.5 HP, 3PH
Deming Dry Pit Solids Handling Sewage Pump Product Description
Deming 7100 Series offers an expanded line of solids-handling centrifugal pumps for mounting in a (horizontal or veritcal position) handling up to 3" spheres. Compact design and heavy shaft with optimum bearing span assure longer packing and bearing life with lower maintenance costs. Series 7100 pumps provide the outstanding performance required to meet the widest possible range of service conditions encountered by industry and municipalities. Typical applications include pumping sanitary wastes, industrial wastes, treatment wastes, storm water, process wastes, pollution control, cannery wastes and meat-process wastes.
Deming Dry Pit Solids Handling Sewage Pump Typical Application
- Sanitary Waste
- Industrial Waste
- Treatment Plants
- Storm Water
- Hospitals
- Schools
- Process Industry
- Pollution Control
Deming Dry Pit Solids Handling Sewage Pump Standard Features
- Handles 3" Spheres
- All Iron Pump Construction
- Regreasable Bearings
- Double-Row Outboard Thrust Bearing
- 416 Stainless Steel Shaft Sleeve
- External Impeller Adjustment
- Back Pull-Out Design
- Positive Machine-Registered Fit Alignment
- Choice of Rotation
- Suction Elbow with Handhole Cleanout (Vertical Units)
- Pump-Out Vanes on Back of Impeller
- Handhole Cleanout in Casing
- MODEL 7170 is Horizontally Mounted and Close Coupled to a JM Frame Motor
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Deming DEM717240661051, 4x4x12x3, Dry Pit Solids Handling, Horizontal Mounted Sewage Pump, 7.5 HP, 3PH | 1 | $0.00/each |
Description
Deming Dry Pit Solids Handling Sewage Pump Product Description
Deming 7100 Series offers an expanded line of solids-handling centrifugal pumps for mounting in a (horizontal or veritcal position) handling up to 3" spheres. Compact design and heavy shaft with optimum bearing span assure longer packing and bearing life with lower maintenance costs. Series 7100 pumps provide the outstanding performance required to meet the widest possible range of service conditions encountered by industry and municipalities. Typical applications include pumping sanitary wastes, industrial wastes, treatment wastes, storm water, process wastes, pollution control, cannery wastes and meat-process wastes.
Deming Dry Pit Solids Handling Sewage Pump Typical Application
- Sanitary Waste
- Industrial Waste
- Treatment Plants
- Storm Water
- Hospitals
- Schools
- Process Industry
- Pollution Control
Deming Dry Pit Solids Handling Sewage Pump Standard Features
- Handles 3" Spheres
- All Iron Pump Construction
- Regreasable Bearings
- Double-Row Outboard Thrust Bearing
- 416 Stainless Steel Shaft Sleeve
- External Impeller Adjustment
- Back Pull-Out Design
- Positive Machine-Registered Fit Alignment
- Choice of Rotation
- Suction Elbow with Handhole Cleanout (Vertical Units)
- Pump-Out Vanes on Back of Impeller
- Handhole Cleanout in Casing
- MODEL 7170 is Horizontally Mounted and Close Coupled to a JM Frame Motor
Specifications
| Brand | Deming |
| Horsepower | 7.5 HP |
| Phase | 3 Ph |
| Hertz | 60 Hz |
| RPM | 1150 RPM |
| Frame | 254JM |
| Discharge Size | 4.0" NPT Discharge Connection |
| Suction Size | 4.0" |
| Maximum Diameter Spheres | 3.0" |
| Maximum Impellar Diameter | 12" Diameter |
| Motor Enclosure | Open Drip Proof Motor (ODP) |
| Max Head | 69' |
| Max Flow Rate | 1050 GPM |
