Brand: Leeson
SKU: M1130055.00

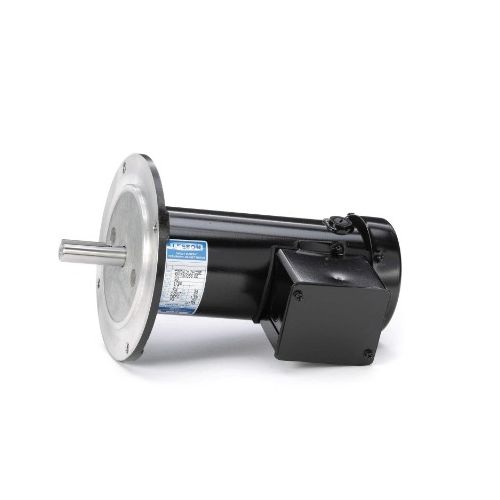

Leeson M1130055.00, DC Sub-Fractional Motor, 1/4 HP, 90 Volts, 2.7 Amps, 60 Hz, 1750 RPM, TEFC Enclosure, 34 Frame, Round, Model No: CM34D17FC2E
Leeson DC Sub-Fractional Motor
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Leeson M1130055.00, DC Sub-Fractional Motor, 1/4 HP, 90 Volts, 2.7 Amps, 60 Hz, 1750 RPM, TEFC Enclosure, 34 Frame, Round, Model No: CM34D17FC2E | 1 | $604.94/each |
Description
Leeson DC Sub-Fractional Motor
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Specifications
| Brand | Leeson |
| Mfg. Number | CM34D17FC2E |
| Product Type | DC Sub-Fractional Motor |
| Horsepower | 1/4 HP |
| Voltage | 90 Volts |
| Output KW | 0.19 kW |
| Frequency | 60 Hz |
| Speed | 1750 RPM |
| Current | 2.7 Amps |
| Enclosure | TEFC |
| Frame Size | 34 |
| Mounting Type | Round |
| Overall Length | 10.65 in |
| Service Factor | 1 |
| Efficiency @ 100% Load | 81.50% |
| Duty Rating | Continuous |
| Overload Protector | No |
| Frame Length | 7.18 in |
| Shaft Diameter | 0.625 in |
| Insulation Class | F |
| Shaft Extension Location | 2.06 in |
| Shaft Rotation | Reversible |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
