Brand: Leeson
SKU: 098003.00

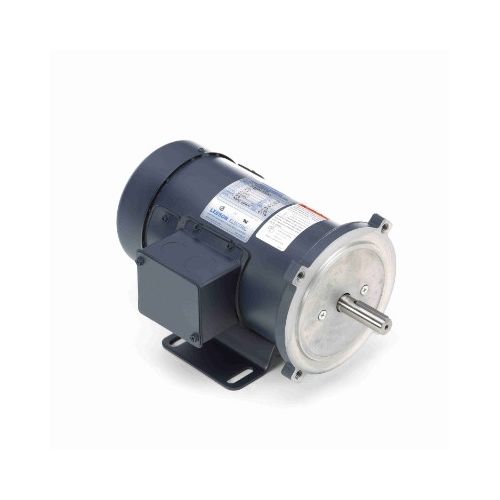

Leeson 098003.00, DC SCR Motor, 1/4 HP, 180 Volts, 1.4 Amps, 60 Hz, 1750 RPM, TEFC Enclosure, SS56C Frame, Rigid C base, Model No: C42D17FK3C
Leeson DC SCR Motor
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Leeson 098003.00, DC SCR Motor, 1/4 HP, 180 Volts, 1.4 Amps, 60 Hz, 1750 RPM, TEFC Enclosure, SS56C Frame, Rigid C base, Model No: C42D17FK3C | 1 | $867.98/each |
Description
Leeson DC SCR Motor
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Specifications
| Brand | Leeson |
| Mfg. Number | C42D17FK3C |
| Product Type | DC SCR Motor |
| Horsepower | 1/4 HP |
| Voltage | 180 Volts |
| Output KW | 0.19 kW |
| Speed | 1750 RPM |
| Current | 1.4 Amps |
| Enclosure | TEFC |
| Frame Size | SS56C |
| Mounting Type | Rigid C base |
| Overall Length | 11.31 in |
| Service Factor | 1 |
| Efficiency @ 100% Load | 77.10% |
| Duty Rating | Continuous |
| Overload Protector | No |
| Frame Length | 7.00 in |
| Shaft Diameter | 0.625 in |
| Insulation Class | F |
| Shaft Extension Location | 2.06 in |
| Shaft Rotation | Reversible |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
