Brand: Leeson
SKU: M1130142.00

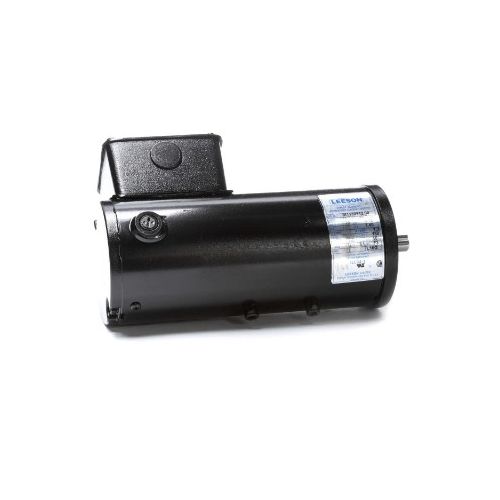

Leeson M1130142.00, DC Metric Motor, 1/4 HP, 180 Volts, 1.7 Amps, 60 Hz, 3000 RPM, IP54 Enclosure, 63D Frame, B14, Model No: CIM34D30NC3B
Leeson DC Metric Motor
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Leeson M1130142.00, DC Metric Motor, 1/4 HP, 180 Volts, 1.7 Amps, 60 Hz, 3000 RPM, IP54 Enclosure, 63D Frame, B14, Model No: CIM34D30NC3B | 1 | $686.05/each |
Description
Leeson DC Metric Motor
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Specifications
| Brand | Leeson |
| Mfg. Number | CIM34D30NC3B |
| Product Type | DC Metric Motor |
| Horsepower | 1/4 HP |
| Voltage | 180 Volts |
| Output KW | 0.25 kW |
| Speed | 3000 RPM |
| Current | 1.7 Amps |
| Enclosure | IP54 |
| Frame Size | 63 D |
| Mounting Type | B14 |
| Overall Length | 8.78 in |
| Service Factor | 1 |
| Efficiency @ 100% Load | 73% |
| Duty Rating | S1 |
| Overload Protector | No |
| Frame Length | 7.18 in |
| Shaft Diameter | 0.437 in |
| Insulation Class | F |
| Shaft Extension Location | 0.905 in |
| Shaft Rotation | Reversible |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
