Brand: Leeson
SKU: 109300.00

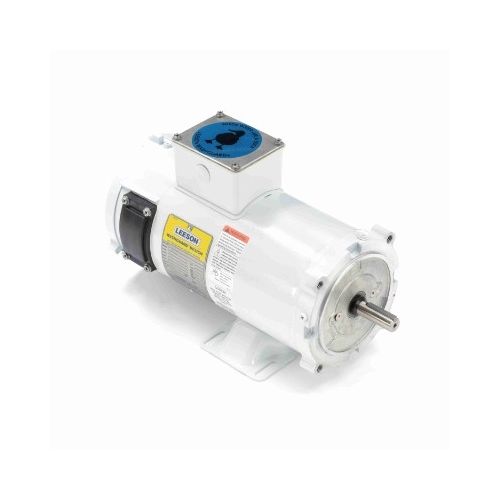

Leeson 109300.00, DC Low Voltage Washdown Duty Motor, 3/4 HP, 12 Volts, 58.0 Amps, 60 Hz, 1800 RPM, TEFC Enclosure, S56C Frame, Rigid C base, Model No: C4D18WK16A
Leeson DC Low Voltage Washdown Duty Motor
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Leeson 109300.00, DC Low Voltage Washdown Duty Motor, 3/4 HP, 12 Volts, 58.0 Amps, 60 Hz, 1800 RPM, TEFC Enclosure, S56C Frame, Rigid C base, Model No: C4D18WK16A | 1 | $1,600.27/each |
Description
Leeson DC Low Voltage Washdown Duty Motor
We have a reputation for building “Mission Critical” motors for some of the toughest industries in the world. For over 30 years we have been building NEMA Premium energy efficient motors. we offer motors and integrated motor/control solutions with IE4 and higher efficiencies.
Specifications
| Brand | Leeson |
| Mfg. Number | C4D18WK16A |
| Product Type | DC Low Voltage Washdown Duty Motor |
| Horsepower | 3/4 HP |
| Voltage | 12 Volts |
| Output KW | 0.56 kW |
| Frequency | 60 Hz |
| Speed | 1800 RPM |
| Current | 58.0 Amps |
| Enclosure | TEFC |
| Frame Size | S56C |
| Mounting Type | Rigid C base |
| Overall Length | 13.32 in |
| Service Factor | 1 |
| Efficiency @ 100% Load | 79.90% |
| Duty Rating | Continuous |
| Overload Protector | No |
| Frame Length | 5.97 in |
| Shaft Diameter | 0.625 in |
| Insulation Class | F |
| Shaft Extension Location | 2.06 in |
| Shaft Rotation | Reversible |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CE, UL |
