Brand: Baldor
SKU: EJMM2534T

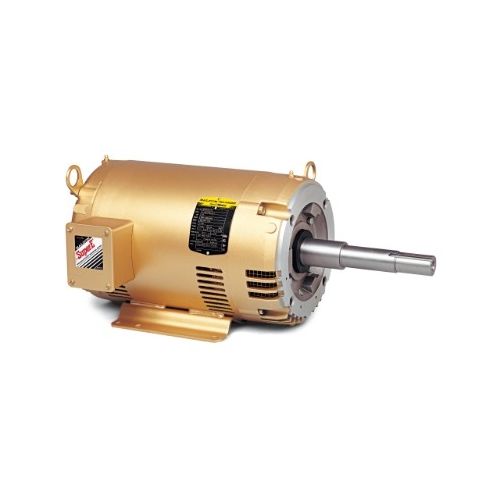

Baldor EJMM2534T, Close-Coupled Pump Motors, 30 HP, 230/460 Volts, 33.0 Amps, 3 Phase, 60 Hz, 3510 RPM, OPSB Enclosure, 284JM Frame, C-Face, 3948M Motor Type, Steel Frame
Baldor Close-Coupled Pump Motors
This close-coupled pump Washdown Duty motor is for commercial and industrial water pump applications, or food processing applications that is exposed to high-pressure washdowns.
Features
- Oversized ball bearings with locked drive end
- TEFC or TENV
- White washdown or SSE Stainless steel
Applications
- Food & Beverage
- Pharmaceuticals
- Pumps
Note: Picture is illustrative and may not reflect the actual product
Key Features:
The Following Was Added To Your Shopping Cart
| Item | Description | Qty | Unit Price |
|---|---|---|---|
|
Baldor EJMM2534T, Close-Coupled Pump Motors, 30 HP, 230/460 Volts, 33.0 Amps, 3 Phase, 60 Hz, 3510 RPM, OPSB Enclosure, 284JM Frame, C-Face, 3948M Motor Type, Steel Frame | 1 | $5,484.33/each |
Description
Baldor Close-Coupled Pump Motors
This close-coupled pump Washdown Duty motor is for commercial and industrial water pump applications, or food processing applications that is exposed to high-pressure washdowns.
Features
- Oversized ball bearings with locked drive end
- TEFC or TENV
- White washdown or SSE Stainless steel
Applications
- Food & Beverage
- Pharmaceuticals
- Pumps
Note: Picture is illustrative and may not reflect the actual product
Specifications
| Brand | Baldor |
| Mfg. Number | EJMM2534T |
| Product Type | Close-Coupled Pump Motors |
| Horsepower | 30 HP |
| Voltage | 230/460 Volts |
| Phase | 3 |
| Frequency | 60 Hz |
| Synchronous Speed | 3600 RPM |
| Speed | 3510 RPM |
| Speed Code | Single Speed |
| High Voltage Full Load Amps, mps | 33.0 Amps |
| Enclosure | OPSB |
| Frame Size | 284JM |
| Motor Type | 3948M |
| Motor Standards | NEMA |
| Number of Poles | 2 |
| Pulley Face Code | C-Face |
| Frame Material | Steel Frame |
| Motor Lead Quantity/Wire Size | 9 @ 8 AWG |
| Overall Length | 26.56 in |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 91.70% |
| Duty Rating | CONT |
| Inverter Code | Inverter ready |
| Auxillary Box | No Auxillary Box |
| Base Indicator | Rigid |
| Bearing Grease Type | POLYREX EM (-20F +300F) |
| Current | 74.0 A @ 208 V 66.0 A @ 230 V 33.0 A @ 460 V |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Heater Indicator | No heater |
| KVA Code | F |
| Motor Lead Exit | KO Box |
| Motor Lead Termination | Flying Leads |
| Rodent Screen | Included |
| Shaft Diameter | 1.375 in |
| Insulation Class | F |
| Power Factor | 92 |
| Pulley End Bearing Type | Ball |
| Shaft Extension Location | Pulley End |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Starting Method | Direct on line |
| Vibration Sensor Indicator | No Vibration Sensor |
| Thermal Device - Bearing | No |
| Thermal Device - Winding | No |
| Ambient Temperature | 40 °C |
| Agency Approvals | CSA, CSA, EEV, UR |
